AWS Certified Cloud Practitioner CLF-CO2

1. What is Cloud Computing?​

Cloud Computing​

  • Cloud Computing is the on-demand delivery of IT resources—such as servers, storage, and databases—via the internet, with pay-as-you-go pricing. It replaces traditional data centers by allowing users to instantly provision and scale resources without upfront costs.
  • The Deployment Models of the Cloud:
    • Public Cloud: Provided by third parties (e.g., AWS, Azure, GCP)
    • Private Cloud: Dedicated to a single organization
    • Hybrid Cloud: Mix of public and private
  • Five Characteristics of Cloud Computing:
    • On-demand access, broad network availability, shared resources (multi-tenancy), rapid scalability, and pay-per-use.
  • Six Advantages of Cloud Computing:
    • Trade capital expense for variable expense
    • Benefit from massive economies of scale
    • Stop guessing capacity
    • Increase speed and agility
    • Stop spending money running and maintaining data centers
    • Go global in minutes

Types of Cloud Computing​

  • Cloud computing is categorized into three main service models:

    • IaaS (Infrastructure as a Service):

      • Provides raw resources like storage, networking, and virtual machines. You manage everything above the infrastructure.
      • Example: AWS EC2, Azure, DigitalOcean

    • PaaS (Platform as a Service):

      • Providers manage infrastructure and runtime; you manage only your apps and data.
      • Example: AWS Elastic Beanstalk, Heroku, Google App Engine

    • SaaS (Software as a Service):

      • Fully managed products; users only use the software without managing infrastructure.
      • Example: Gmail, Dropbox, Zoom
  • AWS has 3 pricing fundamentals (pay-as-you-go model):
    • Compute: Pay per usage time
    • Storage: Pay per GB stored
    • Networking: Pay only for outbound data, free for inbound data

Global Infrastructure​

  • AWS Global Infrastructure Visual
    • Regions: Clusters of data centers. Three or more Availability Zones. (e.g., us-east-1)
    • Availability Zones: Isolated zones with low-latency, redundant setups
    • Edge Locations: 400+ global points for fast content delivery

Security in Cloud: The Shared Responsibility Model & AWS Acceptable Use​

  • Shared Responsibility Model:
    • Customer: Security in the cloud (data, OS, network, firewall)
    • AWS: Security of the cloud (infra, hardware, software)
  • Acceptable Use Policy:
    • Prohibits illegal, harmful, offensive, or abusive activities on AWS.

2. IAM - Identity and Access Management​

Users, Groups, and (Permissions) Policies​

  • IAM is a global AWS service used to manage users, groups, and permissions.

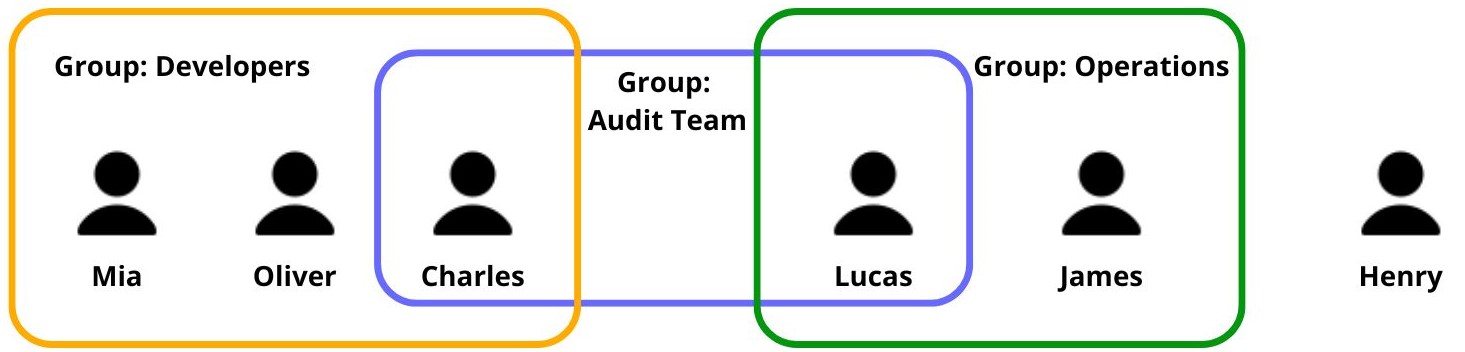

    • Users represent individuals; groups are collections of users (groups cannot contain other groups).
    • Users can belong to multiple groups or none (though grouping is best practice).
  • The root user is created by default for account setup only and should not be used afterward.
  • Permissions are granted through IAM policies (JSON documents) assigned to users/groups.

IAM User & Groups Hands On​

Creating IAM User and Group
  • IAM is a global service (no region selection).
  • Avoid using the root user for daily tasks; create IAM users instead.
  • Create users via the IAM console, set passwords, and assign to groups for easier permission management.
  • Use IAM policies (e.g., AdministratorAccess) by attaching them to groups (e.g., "admin").
  • Tags are optional metadata for organization (e.g., department = engineering).
  • Sign in using account ID or alias – Each AWS account has a unique ID. To simplify the IAM user login URL, you can create a custom account alias (e.g., aws-stephane-v3) to replace the account ID in the sign-in link.
  • Use separate browser windows (normal + incognito) to manage root and IAM users simultaneously.
  • Best practice: Secure all credentials and use IAM users for daily operations.

IAM Policies & Hands On​

  • IAM policies are JSON documents that define permissions in AWS.

  • Policies can be attached to:

    • Groups (shared by all members)
    • Users directly (inline policies)
    • Multiple groups (users inherit combined permissions)

Policy Structure​

Example of Json Structure
{
"Version": "2012-10-17",
"Id": "S3-Account-Permissions",
"Statement": [
    {
    "Sid": "1",
    "Effect": "Allow",
    "Principal": {
        "AWS": ["arn:aws:iam::123456789012:root"]
    },
    "Action": [
        "s3:GetObject",
        "s3:PutObject"
    ],
    "Resource": ["arn:aws:s3:::mybucket/*"]
    }
]
}
  • Policy Structure Key Parts:
    • Version: Policy format (usually "2012-10-17")
    • Id: An optional identifier for the policy.
    • Statement: Contains one or more permission rules
    • Sid: (optional) Statement ID
    • Effect: "Allow" or "Deny"
    • Principal: Who the policy applies to
    • Action: What actions are allowed/denied (e.g., s3:GetObject)
    • Resource: What resources the actions apply to (e.g., an S3 bucket)
    • Condition: (optional) When the policy applies

IAM Policies Hands On​

Hands On

  • User Permissions: IAM users gain permissions from:

    • Group memberships (e.g., admin, developers)
    • Directly attached policies (e.g., IAMReadOnlyAccess)

  • Group Removal: Removing a user from a group instantly removes its permissions.

  • Direct Policy: Attach policies like IAMReadOnlyAccess to give limited access directly to a user.

  • Multiple Policy Sources: Users can have multiple policies from different groups and direct attachments — permissions are cumulative.

  • Custom Policies: Create using a visual editor or JSON to define specific permissions (e.g., ListUsers, GetUser).

IAM MFA (Multi-Factor Authentication)​

  • Adds a second layer of security by requiring both a password (something you know) and an MFA device (something you own).
  • AWS Console -> Account settings -> Edits

Type of MFA​

  • Soft Token Multi-Factor Authentication (MFA) device: This is a made-up option and has been added as a distractor. 🙂‍↕️
  • Hardware Multi-Factor Authentication (MFA) device: A hardware device that generates a six-digit numeric code
  • U2F security key: USB
  • Virtual Multi-Factor Authentication (MFA) device: Software app (ex: Google Authentication)

AWS Access Keys, CLI, and SDK & Hands On​

  • Access Methods: Management Console, CLI, and SDK.
  • Access Keys: Consists of an Access Key ID and Secret Access Key.
    • Used for CLI and SDK access.
    • Must be kept private — each user should generate their own.
  • AWS CLI: command in terminal, ideal for automation and scripting. See more.
    • Download package from official web to setup aws.
  • SDK: Integrates AWS calls into app code. Manage your AWS services using a programming language.

Access Keys and CLI - Hands On​

Hands on
  1. AWS Console -> IAM -> Users -> your user -> Security credentials -> Create access key
  2. Use case: CLI -> Tick Confirmation -> Download .csv file
  3. Login to aws account in CLI:
aws configure
  1. Run aws iam list-users to view IAM users
  • Alternative to this option is to use aws cloudshell (CLI in cloud). Cloudshell Supported Regions.
  • Logging into your AWS account via terminal. Lets you create, modify, or delete AWS resources (like EC2 instances, S3 buckets, IAM users, etc.).

IAM Roles for Services​

  • IAM Roles grant AWS services permissions to act on your behalf. Used by services, not users (e.g., EC2, Lambda).
    • Example: An EC2 instance uses an IAM Role to access AWS resources (e.g., S3) based on the role’s permissions.
  • Common roles: EC2 Instance Role, Lambda Role, CloudFormation Role.
  • Key Purpose: Securely manage service permissions without using long-term credentials.

IAM Security Tools/Audit - Credentials Report & Access Advisor​

  • Credentials Report: Checks if users have secure credentials (e.g., strong passwords, MFA, rotated access keys). → Use it to audit user security.

    • AWS Console -> IAM -> Credentials Report

  • Access Advisor: Shows which AWS services a user has actually used and when. → Use it to remove unused permissions and enforce least privilege.

    • AWS Consloe -> IAM -> User -> your user -> Access Advisor

3. EC2 - Elastic Compute Cloud​

What is EC2?​

  • EC2: AWS service for renting virtual machines (instances) — part of Infrastructure as a Service (IaaS).

    • Customize: OS, CPU, RAM, storage, network, and security groups.

    • User Data (Bootstrapping): run setup scripts at first launch (with root access)

    • Instance Types: Wide range of options (e.g.: t2.micro) for different workloads.

  • Hands-On: Launching EC2 with User Data Script (Based on Similar Setup)

EC2 Instance Types​

  • Instance Naming: Format: Class + Generation + Size (e.g., m5.2xlarge)

    • m = represent Instance Class as "general purpose"
    • 5 = 5th generation
    • 2xlarge = size (more CPU/RAM)

  • Main EC2 Categories:

    • General Purpose (T, M) – Balanced (e.g., t2.micro, free tier)
    • Compute Optimized (C) – CPU-heavy workloads (e.g., ML, video encoding)
    • Memory Optimized (R, X, Z) – RAM-intensive tasks (e.g., DBs, analytics)
    • Storage Optimized (I, G, H) – High-speed local storage (e.g., OLTP, data warehouses)

  • More Instance-types

Security Groups & Classic Ports​

  • Security Groups: Act as virtual firewalls for EC2 instances, controlling inbound and outbound traffic using allow-only\color{tomato}\text{allow-only} rules.

  • Security Groups Rules Include:

    • Type (e.g. SSH, HTTP)
    • Protocol (e.g. TCP)
    • Port number
    • Source (IP range or another security group)

  • Key Features:

    • One security group can be attached to multiple instances
    • Instances can have multiple security groups
    • Security groups are region + VPC specific
    • Can reference other security groups for secure internal communication

SSH to EC2​

SSH to EC2 with Linux or Mac
  • Requirement: Key pair (.pem) when launching EC2
ssh -i my-key.pem ec2-user@<public-ip>
SSH to EC2 with Window

SSH vs Access Key​

FeatureAWS Access Key & CLISSH into EC2
PurposeInteract with AWS services programmaticallyRemote login to a specific EC2 Linux server
CredentialsIAM access key + secret keySSH key pair (.pem file)
Tool usedAWS CLISSH client (e.g., Terminal, PuTTY)
AccessingAWS APIs (create, list, delete resources)The actual EC2 virtual machine

EC2 Instance Role​

  • The Amazon Linux AMI comes with the AWS CLI pre-installed.
    • Never use aws configure or store access keys on EC2 instances — it's a security risk.
  • Instead, use IAM Roles to securely grant EC2 instances permissions. Link to IAM roles.
  • See Demo: IAM Roles on EC2 Instances Tutorial

EC2 Instance Purchasing Options​

  • On-Demand:

    • Pay per use, no commitment
    • Ideal for short, unpredictable workloads
    • Highest cost

  • Reserved Instances (RI):

    • 1- or 3-year commitment
    • Up to 72% discount
    • Best for steady, long-term workloads (e.g., databases)
    • Convertible RIs allow instance changes (lower discount)

  • Savings Plans:

    • Commit to spend ($/hr), not instance type
    • 1- or 3-year term
    • Up to 70% discount
    • More flexible than RIs (across OS, size, tenancy)

  • Spot Instances:

    • Up to 90% off, but can be interrupted anytime
    • Purchase unused AWS EC2 capacity
    • Great for fault-tolerant tasks like batch jobs, ML, image processing
    • Not suited for critical or persistent workloads

  • Dedicated Hosts:

    • Entire physical server for your use
    • Needed for compliance/licensing
    • Most expensive option
    • Better visibility & placement control

  • Dedicated Instances:

    • Run on hardware dedicated to you
    • No control over placement
    • Less isolation than Dedicated Hosts

  • Capacity Reservations:

    • Reserve capacity in a specific AZ
    • No discounts; pay on-demand pricing
    • Ensures availability for short-term or burst workloads

4. EC2 Instance Storage​

EBS - Elastic Block Store & Hands On​

EBS Volume​

  • Persistent storage, meaning data remains intact even if the instance is terminated.

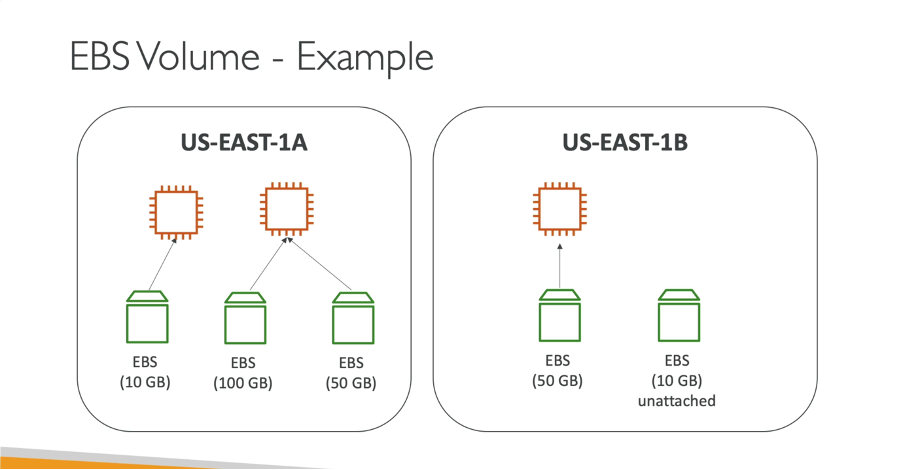

EBS Volume Attachment and Availability Zones​

  • One EBS Volume → One EC2 instance (at Cloud Practitioner level). Multi-Attach is available only for io1/io2 volumes at Associate level and above.
  • AZ-bound: Volumes are tied to a specific Availability Zone (AZ).
  • To move across AZs, create a snapshot, then restore it in the target AZ.
  • Attachment Behavior:
    • One EC2 instance can have multiple EBS volumes.
    • Volumes can be created unattached and attached later.

Delete on Termination Attribute​

  • Controls whether a volume is deleted when the instance is terminated.
    • Root volume: deleted by default.
    • Other volumes: retained by default.
  • You can customize this setting via the AWS Console/AWS CLI.

EBS Hands On​

Creating, Detaching, Default, and Terminate

  • Exploring EBS Volumes on EC2

    • Each EC2 instance has a root EBS volume (e.g., 8 GB by default).
    • You can view attached volumes via the Storage tab or the Volumes section in the AWS Console.

  • Creating and Attaching a New Volume

    • Create additional EBS volumes (e.g., 2 GB, GP2).
    • Must be created in the same Availability Zone (AZ) as the EC2 instance.
    • Attach the new volume via Actions → Attach Volume.
    • The instance can now have multiple volumes attached (e.g., root + additional).

  • AZ Restriction Demonstrated

    • EBS volumes are tied to their AZ.
    • A volume in eu-west-1a cannot be attached to an instance in eu-west-1b.

  • Delete on Termination Behavior

    • Root volume has "Delete on Termination" = Yes by default.
    • Additional volumes are not deleted on instance termination unless configured.
    • You can change this setting during launch or via volume settings.

  • Deleting Volumes

    • Volumes can be deleted anytime via Actions → Delete Volume.
    • Detached volumes remain available and manageable independently.

  • Key Takeaways

    • EBS volumes are AZ-specific and attachable/detachable dynamically.
    • Root volumes are deleted by default upon instance termination.
    • Additional volumes persist unless explicitly set to delete.
    • To use the new volume that is attached. Need Formatting. Out of Scope

EBS Snapshots & Hands On​

  • Point-in-time backups of EBS volumes that can be used to restore data even after volume deletion. No need to detach the volume, but it's recommended for data consistency.
  • Use Cases
    • Backup and restore EBS volumes.
    • Move data across Availability Zones or Regions by restoring snapshots elsewhere.
    • Useful for migration, replication, and disaster recovery.
  • Recycle Bin: Retains deleted snapshots for 1–365 days. Protects against accidental deletion.

EBS Snapshots Hands On​

Creating, Viewing, Copying, and Recycle Bin

  • Creating a Snapshot

    • Select a EC2 → Elastic Block Store → Volume → Actions → Create Snapshot.

  • Viewing Snapshots

    • Select a EC2 → Elastic Block Store → Snapshots

  • Copying Snapshots Across Regions

    • Select snapshot → Copy Snapshot → choose target region.
    • Useful for disaster recovery and cross-region backup.

  • Creating a Volume from a Snapshot

    • Select snapshot → Create Volume from Snapshot.
    • Choose size, AZ, encryption, and tags.
    • Enables cross-AZ volume creation.

  • Recycle Bin Feature

    • Protects against accidental deletion of snapshots and AMIs.
    • Create a Retention Rule\color{tomato}\text{Retention Rule} with a name, resource type, and duration (e.g., 1 day).
    • Deleted snapshots go to Recycle Bin, not lost permanently.

AMI - Amazon Machine Image & Hands On​

  • An Amazon Machine Image (AMI) is a preconfigured template used to launch EC2 instances.
  • You need to add: OS, software license, configurations, and monitoring tools.
  • Types of AMIs
    • AWS-provided AMIs (e.g., Amazon Linux 2).
    • Custom AMIs created by users for tailored environments.
    • Marketplace AMIs from third-party vendors, available for purchase/use.
  • AMI Creation Process
    • Launch and customize an EC2 instance.
    • Stop the instance to ensure integrity.
    • Create an AMI from an EC2 instance, AWS creates EBS snapshots of the instance’s volumes behind the scenes.
    • Use the AMI to launch new EC2 instances, even in other AZs.
  • Requirement:
    • The Amazon Machine Image (AMI) must be in the same region as that of the Amazon EC2 instance to be launched.
    • If the Amazon Machine Image (AMI) exists in a different region, you can copy that Amazon Machine Image (AMI) to the region where you want to launch the EC2 instance.

AMI Hands On​

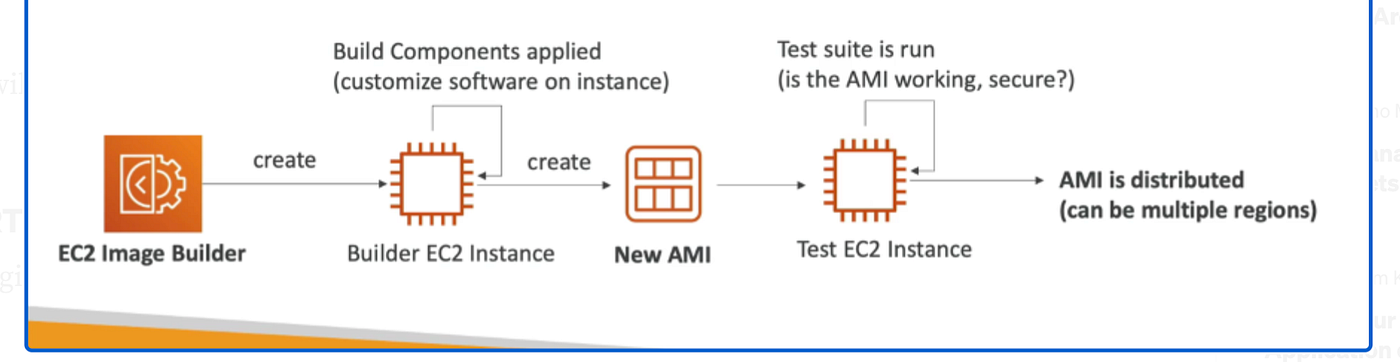

EC2 Image Builder​

  • A service that automates the creation, maintenance, testing, and distribution of AMIs for EC2 instances.
  • How It Works
    • Builder EC2 instance is launched to customize software (e.g., install Java, update CLI, OS patches).
    • After setup, an AMI is created automatically.
    • Optionally, after AMI creation, Image Builder can automatically test the AMI by launching test EC2 instances.
  • Created AMIs can be copied across regions to support global deployments.

EC2 Instance Store​

  • Hardware-attached storage directly connected to the EC2 host, offering higher I/O performance than EBS but without data persistence.
  • Key Characteristics
    • Ephemeral storage: data is lost when the instance is stopped or terminated.
    • Not suitable for persistent or long-term storage.
  • Ideal for temporary data, such as: Buffers, Caches, Scratch space

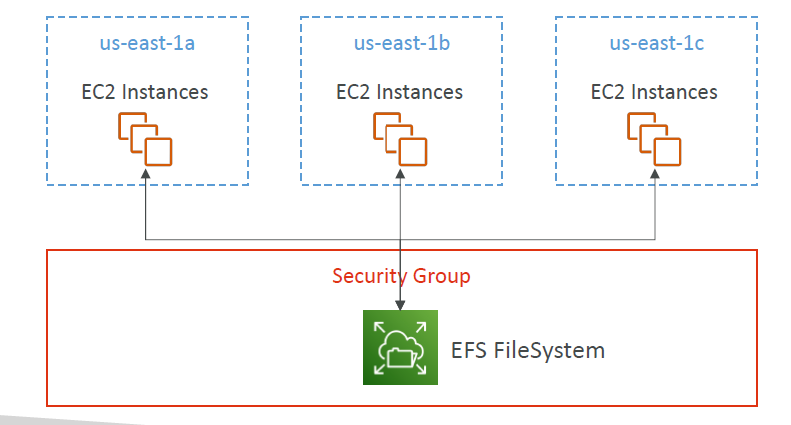

EFS (Elastic File System)​

  • A managed network file system (NFS) that can be mounted to multiple Linux EC2 instances simultaneously.
  • Shared file system accessible across multiple Availability Zones.
  • Key Features
    • Highly available, scalable, and fully managed.
    • Can be mounted by hundreds of EC2 instances at once.
    • Works only with Linux-based EC2 instances.
    • AZ-independent: instances in different AZs can access the same EFS volume.

EFS vs. EBS​

FeatureEBSEFS
AZ scopeSingle AZ onlyMulti-AZ (shared)
Mountable by1 instanceMultiple instances
TypeBlock storageNetwork file system
Data sharingNot sharedShared

EFS Storage Classes​

  • EFS Standard: default, for frequently accessed files.
  • EFS Infrequent Access (EFS-IA):
    • Up to 92% cheaper for rarely accessed files.
    • Files are moved automatically based on lifecycle policies.
    • File access is seamless; applications don't need to know the file’s storage class.

Shared Responsibility Model for EC2 Storage​

  • AWS manages the physical infrastructure, replication, and secure isolation.
  • Customers are responsible for protecting their data, through encryption, backup and snapshot procedures, and awareness of storage type limitations.

Amazon FSx​

  • A fully managed service that provides third-party high-performance file systems on AWS. It complements services like EFS and S3 when specialized file system capabilities are needed.
  • Two main FSx flavors for the exam: FSx for Windows File Server and FSx for Lustre:
    1. FSx for Windows File Server
      • Built on Windows File Server technology.
      • Supports SMB, NTFS, and integrates with Active Directory.
      • Ideal for Windows-based workloads.
      • Deployed across multiple Availability Zones for high availability.
    2. FSx for Lustre ("Lustre" -> "Linux" and "cluster")
      • High-Performance Computing Linux file system.
      • Supports machine learning, analytics, video rendering, and more.
      • Provides millions of IOPS, sub-millisecond latency, and S3 integration.

Visual Diagram of FSx:​

FSx for Windows File Server
FSx for for Lustre

5. ELB & ASG - Elastic Load Balancing & Auto Scaling Groups​

High Availability, Scalability, and Elasticity​

  • High Availability:
    • Running applications across multiple Availability Zones (AZs) to ensure service continuity during failures.
    • Load Balancers and Auto Scaling Groups support multi-AZ deployments.
  • Scalability:
    • Vertical: Increasing instance size (e.g., t2.micro → t2.large). Common in databases.
    • Horizontal: Adding more instances (e.g., 1 EC2 → 6 EC2s). Requires distributed systems.
  • Elasticity:
    • A cloud-native feature where resource scaling happens automatically based on demand, helping optimize cost.

Elastic Load Balancing (ELB)​

  • A managed AWS service that distributes incoming traffic across multiple EC2 instances to improve scalability, availability, and resilience.
  • ELB Types:
    • Application Load Balancer (ALB): Layer 7 (HTTP/HTTPS, gRPC)
    • Network Load Balancer (NLB): Layer 4 (TCP/UDP)
    • Gateway Load Balancer (GWLB): Layer 3 (IP layer)
    • Classic Load Balancer (Old version)
  • ELB Type Definition and Purpose:

Application Load Balancer (ALB) Hands On​

Demo + Summary

Application Load Balancer (ALB) – Hands-On Summary​

EC2 Setup​

  • Launched two EC2 instances using Amazon Linux 2 (t2.micro).
  • Added user data scripts to return "hello world" on HTTP.
  • Verified both instances respond via their public IPs.

Creating the ALB​

  • Created an Application Load Balancer.
  • Set it as internet-facing with IPv4 in multiple Availability Zones.
  • Assigned a new security group allowing HTTP (port 80).

Configuring Listeners and Target Group​

  • Created a target group (HTTP, port 80).
  • Registered both EC2 instances as targets.
  • Linked target group to ALB listener on port 80.
  • Waited for the ALB to become active.

Verifying Load Balancing​

  • Accessed ALB DNS name → confirmed it routes to EC2 instances.
  • Refreshed page: traffic alternated between instances (load balancing working).
  • Stopped one instance → ALB automatically routed all traffic to the healthy instance.
  • Restarted the instance → once healthy, traffic resumed distributing to both.

Key Takeaways​

  • ALB distributes HTTP traffic across healthy EC2 targets.
  • Health checks ensure traffic goes only to working instances.
  • Demonstrated resilience and automatic failover using ALB.

Auto Scaling Groups (ASG) & Hands On​

  • A service that automatically adjusts the number of EC2 instances based on demand.
  • Key Features:
    • Scale out/in: Adds or removes instances based on load.
    • Health checks: Replaces unhealthy instances automatically.
    • Min/Desired/Max size settings define capacity boundaries.
    • Works with Load Balancer to route traffic to healthy instances.

ASG Hands On​

Demo + Summary
  • AWS Console -> EC2 -> Auto Scaling Groups

Setup​

  • Created DemoASG with a Launch Template (Amazon Linux 2, t2.micro, user data, security group).
  • Selected 3 AZs, capacity: min 1, desired 2, max 4.

Configuration​

  • Attached to ALB via target group.
  • Enabled EC2 + ELB health checks.

Behavior​

  • ASG launched 2 instances, registered with target group.
  • Manually terminated 1 → ASG auto-replaced it.
  • Verified load distribution via ALB DNS.

ASG Strategies​

  • Auto Scaling Groups can be optionally configured to adjust capacity automatically based on defined rules.
  • Stategies:
    1. Manual Scaling
    2. Dynamic Scaling (reactive, metric-based)
      • Simple/Step Scaling: Triggered by CloudWatch alarms (e.g., scale out if CPU > 70%).
      • Target Tracking:Maintains a target metric (e.g., keep CPU at 40%) automatically.
      • Scheduled Scaling: Scaling at specific times.
    3. Predictive Scaling: Uses Machine Learning to forecast based on Historical patterns.

6. Amazon S3 - Simple Storage Service​

S3​

  • Core AWS storage, known for infinite scalability (e.g., backup, disaster recovery, analytics, static websites).
  • Data is stored in buckets, which are region-specific and must have globally unique names.
  • Objects are files in buckets, identified by keys—the full path to the file (S3 URL).
  • Max object size: 5 TB; use multipart upload for files > 5 GB.
  • Public URL (returns Access Denied unless made public)
  • Demo

Amazon S3 Security​

  • S3 security is managed using two types of access control:
    • User-Based: IAM Policies
    • Resourced-Based:
      • Bucket Policies: Policies that get attached to S3 Buckets
      • Object Access Control List (ACL)
      • Bucket Access Control List (ACL)

Amazon S3 Security - Bucket Policies​

  • Bucket Policies:
    • JSON Base Policies
  • Bucket Settings - Block Public Access:
    • Remove the risk of (company) data leak

Amazon S3 Security - Accessing Bucket​

  • Access Methods:
    • Public Access - Use Bucket Policy
    • User Access - Use IAM permission/policy: An IAM principal can access an object if allowed by IAM or bucket policy and no explicit deny exists.
    • EC2 instance access - Use IAM Roles
    • Cross-Account Access - Use Bucket Policy

S3 Website Hosting​

  • Hosts static sites like HTML, CSS, JS from an S3 bucket. Set index.html as homepage.
  • Turn on Static Website Hosting in settings. No support for dynamic code (PHP, DB)
  • Make bucket public to allow access
  • Access via a public S3 website URL (e.g., http://bucket-name.s3-website-region.amazonaws.com)

S3 Versioning​

  • Enable Versioning: Keeps all versions of an object when overwritten.
  • Upload New Versions: Uploading a file with the same name adds a new version, not a replacement.
  • View Versions: "Show versions" reveals version IDs, including older and current versions.
  • Rollback: Permanently deleting the latest version to revert to a previous one.
  • Delete Marker: Deleting an object will adds a delete marker, which hides the object; deleting the marker restores the previous version.

S3 Replication & Hands On​

  • Two types: Cross-Region Replication (CRR) and Same-Region Replication (SRR).
  • Versioning must be enabled on both source and destination buckets.
  • IAM permissions are required for S3 to replicate data asynchronously.
  • CRR use cases: compliance, cross-account access, and lower-latency access in another region.
  • SRR use cases: log aggregation and syncing between production and test environments.

S3 Replication Hands On​

Demo + Summary

S3 Replication Hands-On Summary​

  • Created origin and target buckets with versioning enabled in same or different regions.
  • Uploaded a file to the origin bucket before replication—no replication occurred yet.
  • Configured a replication rule on the origin bucket with IAM role and full-bucket scope.
  • Only new uploads after rule activation (e.g., coffee.jpeg) are replicated automatically.
  • Replicated versioned updates (e.g., new version of beach.jpeg) are copied with preserved version IDs.

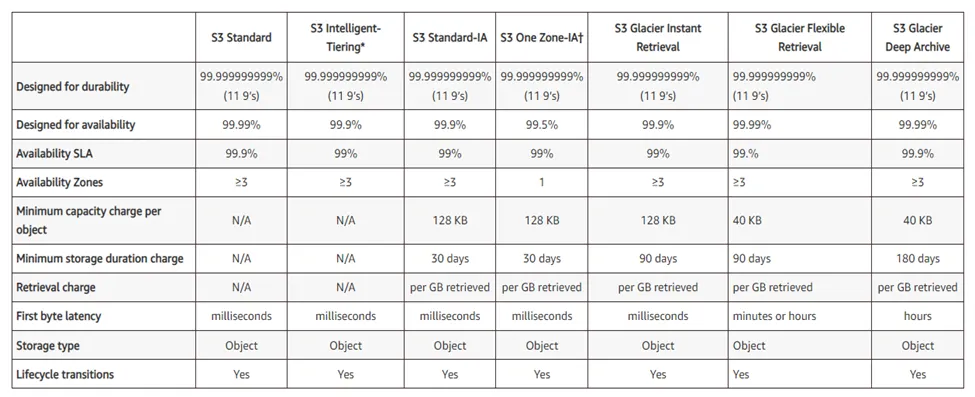

S3 Storage Classes​

  • S3 Standard: Default class for frequent access; 99.99% availability, low latency, multi-AZ.
  • S3 Standard-IA: For infrequent access; lower cost, 99.9% availability, retrieval fees.
  • S3 One Zone-IA: Like Standard-IA but stored in one AZ only; 99.5% availability, risk of data loss if AZ fails.
  • S3 Glacier Classes:
    • Glacier Instant Retrieval: Millisecond access, 90-day minimum.
    • Glacier Flexible Retrieval: 1 min to 12 hrs access, 90-day minimum.
    • Glacier Deep Archive: 12–48 hrs access, 180-day minimum, lowest cost. Retain data sets for 7-10 years or longer.

    Minimum storage duration: you’re billed for the full 90 or 180 days even if you delete the object early.

  • S3 Intelligent-Tiering: Auto-moves data across tiers (frequent, infrequent, archive) based on access patterns; small monitoring fee, no retrieval fee.

Comparison: S3 Standard, S3 Standard-IA, S3 One Zone-IA​

FeatureS3 StandardS3 Standard-IAS3 One Zone-IA
Availability Zones3+ AZs3+ AZs1 AZ only
Durability99.999999999% (11 9’s)99.999999999%99.999999999%
Availability99.99%99.9%99.5%
Access FrequencyFrequentInfrequentInfrequent
Retrieval TimeInstantInstantInstant
CostHighestLowerLowest (20% cheaper than Standard-IA)
Use Case SuitabilityActive dataInfrequent access but critical dataInfrequent access and non-critical data that can be recreated

Main Difference:​

  • S3 One Zone-IA stores your data in just one AZ, so it costs less but is less resilient to AZ failure.
  • Other classes (like Standard and Standard-IA) replicate data across at least 3 AZs, giving you higher availability and fault tolerance.

S3 Lifecycle Rules​

  • Click in your S3 -> Management.
  • Manually defined policies to transition objects between storage classes. You choose the timing and storage class transitions.

S3 Intelligent-Tiering vs Lifecycle Rules​

  • S3 Intelligent-Tiering: Automatically moves objects between tiers based on access; best for unpredictable usage with a small monitoring fee.
  • Lifecycle Rules: Manually set transitions based on time; best for predictable patterns with no monitoring cost.

S3 Encryption​

  • Server-side encryption (default): S3 automatically encrypts objects on upload.
  • Client-side encryption: Users encrypt data before uploading.
  • Both models exist, but server-side is enabled by default.

Here’s a concise summary of the four topics:

IAM Access Analyzer for S3​

  • Monitors S3 bucket access by analyzing bucket policies, ACLs, and access points.
  • Identifies public or cross-account access so you can review and secure unintended exposure.

Shared Responsibility Model (S3)​

  • AWS: Manages infrastructure, availability, and internal security.
  • You: Responsible for setting up versioning, encryption, policies, logging, and storage class selection.

AWS Snowball & Snowball Edge​

  • Purpose: Physical devices for moving large data or running compute in remote/offline locations.
  • Types:
    • Storage Optimized – 210 TB for bulk data transfer.
    • Compute Optimized – 28 TB + supports EC2/Lambda at the edge.
  • Pricing: Free to upload into S3; pay for device use & data leaving AWS.

AWS Storage Gateway​

  • Bridges on-premises storage with AWS cloud in hybrid cloud setups.
  • Enables backup, disaster recovery, and cloud tiering using services like S3, Glacier, and EBS.
    • (AWS Storage Gateway works with these aws services behind the scene)
  • Types include File, Volume, and Tape Gateways. (No need to remember)

Summary of storage services in AWS​

ServiceTypeDescription
Amazon EBSBlock StorageLike a virtual hard drive for EC2 instances. Used for operating systems, apps.
Amazon EFSFile StorageShared file system (like a network drive). Multiple EC2s can access it.
EC2 Instance StoreTemporary/Ephemeral Block StorageFast, local storage tied to the EC2 instance — data lost on stop/terminate.
Amazon S3Object StorageStores files (objects) like images, videos, backups. Not a database.

7. Databases & Analytics​

Database​

  • Databases store structured data with indexes for fast search and querying.
  • Unlike EBS, S3, or EFS, databases support relationships, queries, and data integrity.
  • Managed (RDS, DynamoDB): AWS handles patching, backups, scaling, availability.

Types of Databases​

  1. Relational Databases (SQL): Structured like Excel, Use SQL for querying
  2. NoSQL Databases: Flexible schema (e.g., JSON format).

Relational Database Services (RDS) & Aurora ​

  • Amazon RDS:
    • Managed relational database service.
    • Supports MySQL, PostgreSQL, MariaDB, Oracle, SQL Server.
    • Includes backup, scaling, multi-AZ, read replicas.
    • No SSH access.
  • Amazon Aurora: -> (~20% more expensive but efficient)
    • AWS-built relational DB (MySQL/PostgreSQL compatible).
    • 3–5x faster than RDS, auto storage scaling (up to 128 TB).
  • Aurora Serverless: (no need to manage)
    • Auto-starts/stops DB as needed.
    • Pay per second — great for variable workloads.

RDS Deployment Options​

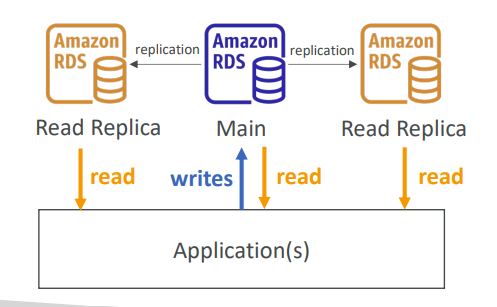

Read Replicas

  • Improves database scalability

  • Scale read-heavy apps by adding up to 15 replicas; writes go to the main DB only.

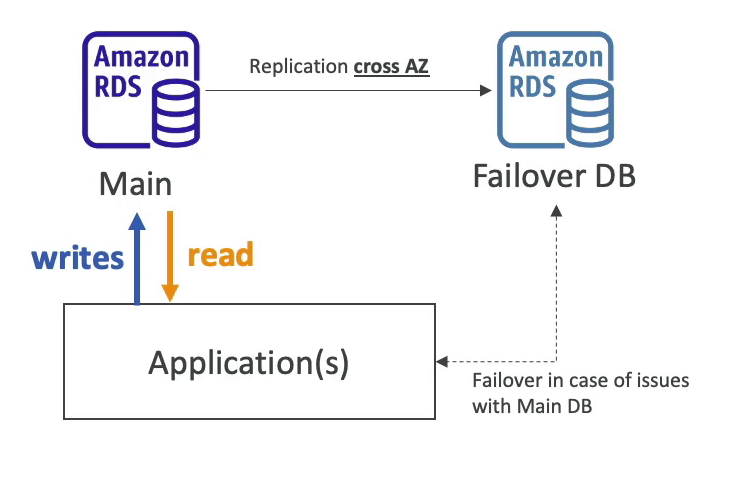

Multi-AZ
  • Adds high availability by syncing to a standby in a different AZ with automatic failover.
  • The failure DB is a passive, won't be accessible unless issue occur with main DB
  • Can only have | other AZ as failover
Multi-Region Replicas
  • Improve global read latency and enable disaster recovery across AWS regions (writes still go to main region DB).

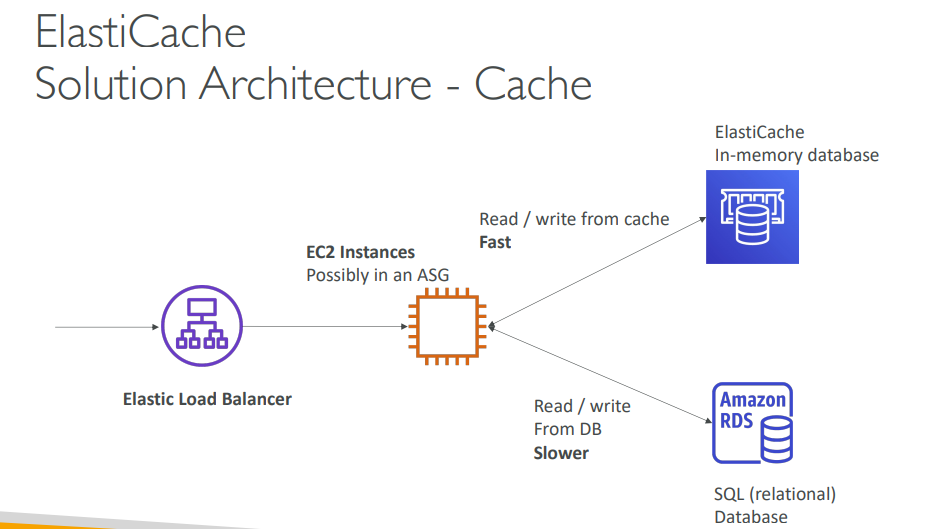

Amazon ElastiCache (Redis / Memcached) ​

  • Managed in-memory database used to cache frequently accessed data for low-latency performance.
  • Reduces load on RDS or other DBs by handling repetitive read-heavy operations.
  • Supports Redis and Memcached; AWS manages patching, recovery, and scaling.
  • Use when you need sub-millisecond latency for frequent queries.
  • Integrated into typical architectures alongside EC2 and RDS.

Amazon DynamoDB & DynamoDB Accelerator (DAX)​

  • Fully managed, serverless NoSQL key-value database with single-digit millisecond latency.
  • Scales automatically to millions of requests/second and stores trillions of rows.
  • Schemaless: Each item can have different attributes. Not every item has to have all attributes (Null).
  • No joins or foreign keys — all data lives in a single table format.
  • DynamoDB Accelerator - DAX: Optional in-memory cache for DynamoDB (microsecond read latency).

DynamoDB Global Tables​

  • Enable multi-region, low-latency access by replicating tables across regions.
  • Allow active-active writes — write in any region, replicate to others.
  • Useful for global apps needing fast local access and disaster recovery.
  • Supports up to 10 regions in sync at once.

Amazon Redshift & Serverless ​

  • Type: OLAP (Online Analytical Processing) database based on PostgreSQL.
  • Purpose: Data warehousing and analytics — used for complex queries on large volumes of structured data.
  • Key Features:
    • Columnar storage for fast performance.
    • MPP (Massively Parallel Processing) for high-speed computations.
    • Integrates with BI tools like QuickSight & Tableau.
  • Redshift Serverless:
    • No need to manage infrastructure.
    • Auto-scales compute based on query load.
    • Pay-per-use pricing for analytics workloads.
  • Use Cases:
    • Analytics dashboards, reporting, business intelligence (BI).

Amazon EMR (Elastic MapReduce) ​

  • Type: Not a database — Big Data processing framework.
  • Purpose: Run Hadoop/Spark clusters to process large datasets across multiple EC2 instances.
  • Key Features:
    • Supports Apache tools like Spark, Hive, HBase, Presto, Flink.
    • Auto-scaling and Spot instance integration for cost-efficiency.
    • You manage the logic and jobs, EMR provisions and configures the infrastructure.
  • Use Cases:
    • Machine learning pipelines, web indexing, log processing, batch jobs.
  • Exam Tip: Any question mentioning Hadoop = EMR.

Amazon Athena ​

  • Type: Serverless SQL query engine for data in Amazon S3.
  • Purpose: Query S3 data directly using SQL, no data loading required.
  • Key Features:
    • No infrastructure to manage, only pay for queries you run
    • Pay-per-scan: ~$5 per TB of data scanned.
  • Exam Tip: If you see SQL on S3 or serverless analytics, the answer is Athena.

Amazon QuickSight ​

  • Serverless BI tool to build dashboards, charts, and data visualizations.
  • Integrates with RDS, Athena, Redshift, Aurora, and S3.

Amazon DocumentDB ​

  • Fully managed NoSQL database, MongoDB-compatible.
  • Stores and queries JSON data, auto-scales storage, and replicates across 3 AZs.
  • Exam Tip: MongoDB -> DocumentDB, NoSQL -> DocumentDB/DynamoDB

Amazon Neptune ​

  • Graph database for highly connected data (e.g., social networks, knowledge graphs).
  • Supports billions of relationships with millisecond latency; fully managed and replicated.
  • Exam Tip: Anything related to graph databases, think no more than Neptune.

Amazon Timestream ​

  • Time series database, optimized for data that changes over time (e.g., sensor metrics).
  • Serverless, auto-scaling, and fast — ideal for real-time analytics.
  • Exam Tip: Time series data -> Timestream

Amazon Quantum Ledger Database (QLDB) ​

  • A ledger is a book recording financial transactions
  • Amazon QLDB is a fully managed ledger database designed to provide a transparent, immutable, and cryptographically.
  • Track applications' data change and maintains a complete and verifiable history of changes over time.

Amazon Managed Blockchain ​

  • Blockchain = digital notebook + shared by everyone + can’t be changed + adds new pages only
  • Lets you create or join blockchain networks using Hyperledger Fabric or Ethereum.
  • Ideal when multiple parties need to transact without a central authority.
  • Exam Tip: Anything related to Blockchains, Hyperledger Fabric, or Ethereum -> Amazon Managed Blockchain

AWS Glue & Glue Data Catalog ​

  • Serverless ETL (Extract, Transform, Load) service for preparing data for analytics.
  • Pulls data from sources like S3/RDS → transforms it → loads into destinations like Redshift.
  • Glue Data Catalog helps store metadata for use in Athena, EMR, and Redshift.
    • A central repository to store structural and operational metadata for data assets in AWS Glue

AWS DMS (Database Migration Service) ​

  • A tool that helps you move data from one database to another with minimal downtime
  • Supports homogeneous (same DB type) and heterogeneous (e.g., SQL → Aurora) migrations.
  • No downtime — source DB stays live during migration.
  • Exam Tip: Migrating an on-premises database to run on Amazon EC2: Answer is AWS MGN, not DMS. Move to EC2 not Database Service.

8. Other Compute Services: ECS, Lambda, Batch, Lightsail​

ECS , Fargate , & ECR ​

  • ECS (Elastic Container Service): Run Docker containers on EC2. You manage the infrastructure.
  • Fargate: Serverless container service — runs containers without managing servers.
  • ECR (Elastic Container Registry): Private Docker image storage for ECS and Fargate.

Amazon EKS ​

  • EKS (Elastic Kubernetes Service): Run and manage Kubernetes clusters on AWS.
  • Supports both EC2 and Fargate as compute backends.
  • Best for container orchestration in a cloud-agnostic way.

AWS Lambda ​

  • Run code on demand with no servers to manage.
  • Event-driven: triggered by S3, API Gateway, DynamoDB, CRON jobs, etc.
  • Supports many languages; scales automatically; pay per request + compute time.
  • Limited to 15 minutes runtime.

Serverless Model​

  • You focus on code, AWS manages the servers.
  • Examples: Lambda, S3, DynamoDB, Fargate, API Gateway.
  • Benefit: no provisioning, auto-scaling, and low cost for idle services.

API Gateway ​

  • Fully managed service for developers to create, publish, maintain, monitor, and secure APIs in the cloud.
  • Exposes Lambda as public REST or WebSocket APIs (as HTTP API).
  • Essential for serverless backend APIs.
  • Exam tip: Serverless APIs → use API Gateway + Lambda.

AWS Batch ​

  • Managed service for running batch jobs (start → end) at any scale.
  • Uses Docker + ECS to define jobs.
  • Auto-launches EC2 or Spot Instances based on job needs.
  • Great for image/video processing, data transformations, etc.
  • Managed Server, not a serverless (uses EC2 behind the scenes).
  • No time limit, supports any language, more storage.

Amazon Lightsail ​

  • All-in-one service: VM + database + storage + networking.
  • Very simple setup — great for beginners.
  • Predictable pricing.
  • Limited features — no auto scaling, low AWS integration. (Not ideal for advanced AWS users)

9. Deployments & Managing Infrastructure at Scale​

Provisioning - CloudFormation ​

  • Infrastructure as Code (IaC): Define AWS resources in YAML/JSON.
  • Declarative: You say what you want; CFN figures out how to create/update/delete it.
  • Best for: Repeating architecture across accounts or regions.
  • Similar tool: Terraform

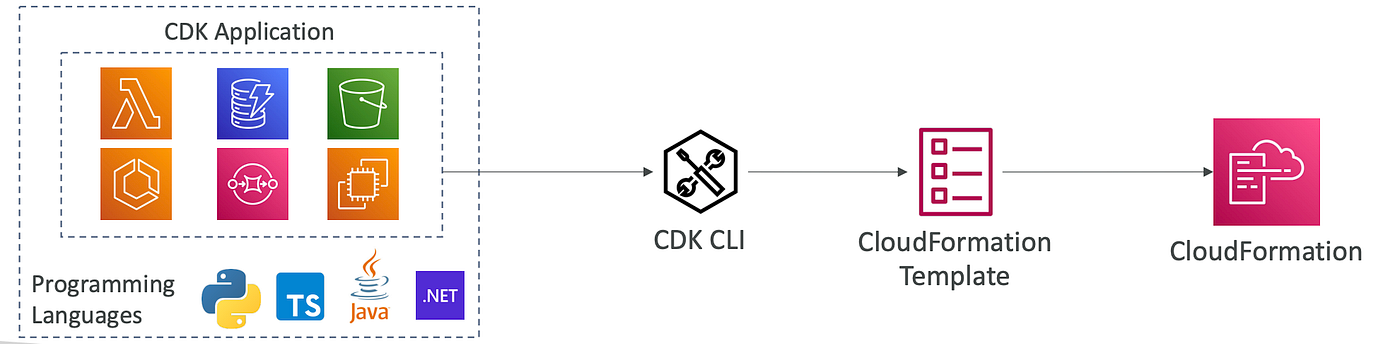

Provisioning - CDK (Cloud Development Kit) ​

  • Define infrastructure using code (Python, JS, etc.).
  • CDK → Compiles to CloudFormation template.
  • Best for: Developers who prefer real code over YAML.

Provisioning - Elastic Beanstalk ​

  • PaaS for web apps: Deploy your code, AWS handles the infrastructure. Limited to programming language and docker
  • Supports multiple platforms (Node.js, Python, Java, Docker).
  • Best for: Quick deployments with minimal infrastructure management.

Application deployment - CodeDeploy ​

  • Automated deployments to EC2 & on-prem servers. (Hybrid)
  • Requires CodeDeploy Agent installed.
  • Best for: Rolling updates of application versions.

Developer Services - CodeCommit ​

  • Git repository in AWS (Discontinued for new users after July 2024).
  • Exam tip: Treat references as "GitHub-like" Git repositories.

Developer Services - CodeBuild ​

  • Build service: Compile code, run tests, create deployable packages.
  • Fully managed, serverless, pay-as-you-go.

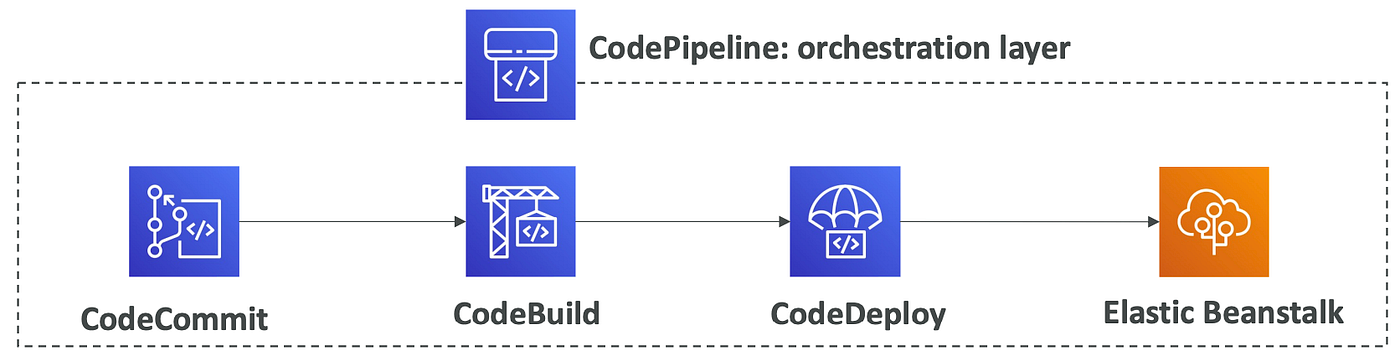

Application deployment - CodePipeline ​

  • CI/CD orchestration: Connect CodeCommit → CodeBuild → CodeDeploy.
  • Best for: Automating code integration & delivery processes.

Developer Services - CodeArtifact ​

  • Secure artifact repo (npm, pip, Maven, etc.).
  • Store software packages/dependencies on AWS.

Configuration management - AWS Systems Manager (SSM) ​

  • A hybrid operations management tool for AWS and on-premises servers.
  • Helps automate tasks like patching, running commands, and storing configurations.
  • Centralized tool for monitoring, managing, and troubleshooting AWS resources. Gives operational insights to quickly detect and resolve issues affecting applications.
  • Create logical groups of resources. Able to select a resource group and view its recent API activity.

Feature Systems Manager - Session Manager Highlights​

  • Allows secure shell (SSH-like) or PowerShell access to EC2 instances/Linux/macOS/Windows — without opening ports, using bastion hosts, or requiring public IPs.
  • Needs IAM role (AmazonSSMManagedInstanceCore) + SSM Agent.
  • Sessions can be logged to S3 or CloudWatch.

Feature Systems Manager - Parameter Store Highlights​

  • Store config and secrets as string or encrypted string.
  • Supports versioning and access control with IAM.
  • Fully serverless and scalable.

Configuration management - AWS OpsWorks​

  • Managed configuration management service that runs Chef and Puppet.
  • Automates how servers are configured, deployed, and managed across EC2 instances or on-premises servers.
  • Supports hybrid environments.
  • Best for: teams already using Chef/Puppet and wanting AWS to manage the control servers.

10. Leveraging the AWS Global Infrastructure​

Why Global Applications & AWS Global Infrastructure​

  • Global applications run across multiple AWS regions to reduce latency, support disaster recovery, and improve resilience against attacks.
  • AWS global infrastructure includes:
    • Regions: Independent geographies.
    • Availability Zones (AZs): Isolated data centers within a region.
    • Edge Locations: For cache copies of the content (images, videos, files) via CloudFront.
  • Benefits: Reduced latency, improved fault tolerance, and disaster recovery support.

Amazon Route 53 (DNS + Routing Policies) ​

  • Route 53 is AWS's managed DNS service that maps URLs to resources.
  • Record types:
    • A / AAAA: Map to IPs.
    • CNAME: Map to another hostname.
    • Alias: Map to AWS resources (e.g., ELB, CloudFront).
  • Routing Policies:
    • Simple: One IP, no health check.
    • Weighted: Traffic split by weights (with health checks).
    • Latency: Routes to lowest-latency region.
    • Failover: Switch to backup if the primary fails (with health checks).
  • Features: Domain Registeration, DNS, Health Checks, Routing Policy

Amazon CloudFront (CDN) ​

  • CloudFront is AWS’s global CDN that caches static content (images, HTML) at 216+ Edge locations.
  • Supports S3, EC2, and custom HTTP origins.
  • Uses Origin Access Control (OAC) for secure access to private S3 buckets.
  • Reduces latency, improves load speed, and provides DDoS protection.
  • CDN use "Caching Content in Edge Location" to improve read performance.
  • WAF & Shield can help protect from web attacks.

S3 Transfer Acceleration​

  • Speeds up file uploads/downloads to S3 buckets in distant regions by routing data through nearby Edge Locations and AWS’s internal network.
  • Useful for global uploads/downloads.
  • Typically improves speed by ~13% or more depending on location and internet quality.

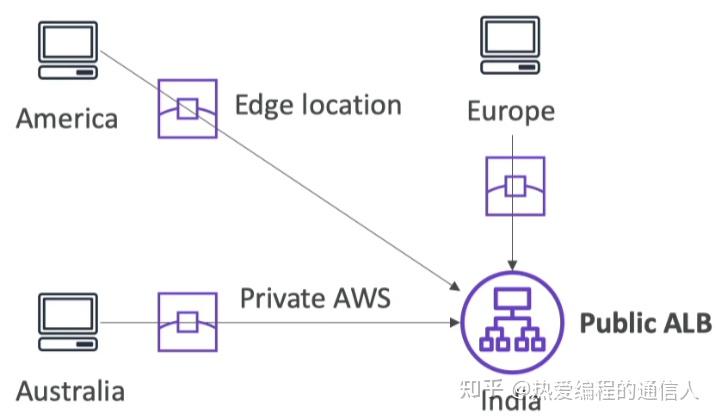

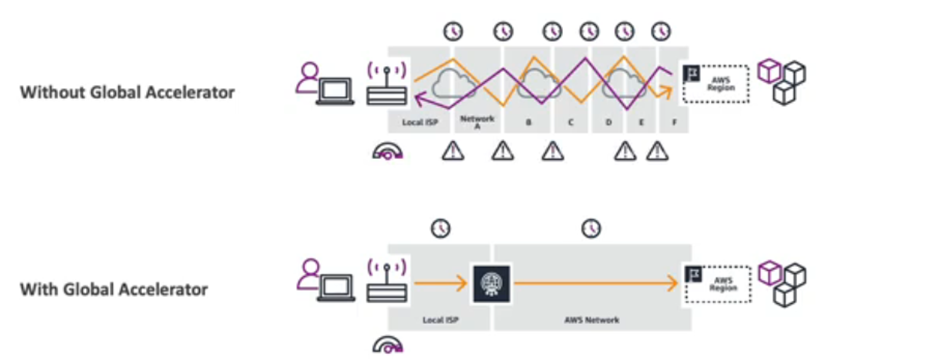

AWS Global Accelerator ​

  • Optimizes global application performance by routing traffic through AWS’s private global network.
  • Provides static Anycast IPs and low-latency routing for TCP/UDP traffic.
  • Does not cache content (unlike CloudFront).
  • Ideal for apps needing fast, reliable, region-aware access with failover.

AWS Outposts ​

  • AWS installs and manages physical servers in your on-premises data center.
  • Provides the same AWS APIs/services locally (e.g., EC2, S3, RDS).
  • Supports hybrid cloud scenarios with low latency, local data residency, and cloud integration.

AWS Wavelength ​

  • Deploy AWS services (e.g., EC2, VPC) at the 5G edge within telecom providers' infrastructure.
  • Enables ultra-low latency for mobile/IoT that optimize with 5G. Use cases (e.g., smart cities, AR/VR, live video, gaming).
  • Not the best choice if the game isn't primarily targeting mobile 5G users.
  • Keeps user traffic within the telecom network, enhancing speed and privacy.

AWS Local Zones ​

  • Extend your AWS region to additional nearby cities.
  • Supports compute, storage, databases closer to end-users.
  • Deployed as extensions of AWS regions, allowing you to run latency-sensitive workloads closer to users.

Global Application Architecture Models​

  • Single Region, Single AZ: Low availability and high latency globally.
  • Single Region, Multi-AZ: High availability, but no global latency benefits.
  • Multi-Region Active-Passive: One write region, others read-only (improves read latency).
  • Multi-Region Active-Active: All regions support reads/writes (best latency, highest complexity).

11. Cloud Integrations​

Cloud Integration Patterns​

  • Synchronous Communication: Services call each other directly (e.g., buying → shipping service).
  • Asynchronous Communication: Uses intermediaries (queues) like SQS or SNS to decouple services.
  • Benefits of decoupling: Independent scaling, fault isolation, better traffic handling.

Decouple Serices - Amazon SQS (Simple Queue Service) ​

  • A fully managed message queue to decouple producers and consumers.
  • Supports Standard queues (best-effort ordering) and FIFO queues (guaranteed order).
  • Scales automatically, messages retained for up to 14 days.
  • Use case: video processing layer that scales based on queue depth.
  • Consumers must poll and delete messages after processing.

Decouple Serices - Amazon SNS (Simple Notification Service) ​

  • Pub/Sub model: one publisher, many subscribers.
  • Each subscriber (email, Lambda, SQS, HTTP, SMS, etc.) receives all messages.
  • Ideal for notifications and fan-out scenarios.
  • Supports millions of subscriptions per topic.

Amazon Kinesis ​

  • Used for real-time data streaming, persistence and analysis at scale.
  • Core services:
    • Kinesis Data Streams – Ingests real-time data.
    • Kinesis Data Firehose – Loads data to targets like S3, Redshift.
  • Use case: streaming analytics and dashboards.

Amazon MQ ​

  • Managed message broker supporting RabbitMQ and ActiveMQ.
  • Designed for legacy apps using open protocols (MQTT, AMQP, STOMP, Openwire, WSS). Good for app that don't support SQS & SNS.
  • When migrating to the cloud, instead of re-engineering the application to use SQS and SNS, we can use Amazon MC.
  • Not as scalable as SQS/SNS; requires multi-AZ setup for high availability.
  • Amazon MQ has both queue feature (~SQS) and topic features (~SNS)

12. Cloud Monitoring​

Amazon CloudWatch​

CloudWatch Metrics​

  • Collects performance data (e.g., CPUUtilization, NetworkIn, Billing).
  • Default: 5-minute intervals; 1-minute with Detailed Monitoring (extra cost).
  • Used for EC2, EBS, S3, etc.
  • No native RAM metric for EC2—must install custom agent.

CloudWatch Alarms​

  • Triggered when a metric breaches a threshold.
  • Can take actions like:
    • Auto Scaling
    • EC2 stop/terminate/reboot/recover
    • Send notifications via SNS
  • Alarm states: OK, INSUFFICIENT_DATA, ALARM

CloudWatch Logs​

  • Centralized log collection and retention system.
  • Sources' collect log from: Lambda, EC2 (via CloudWatch Agent), ECS, CloudTrail, etc.
  • CloudWatch log agents: on EC2 machines or on-premises servers
    • EC2 needs CloudWatch Agent and proper IAM role to send logs.
  • Supports custom retention (1 day to indefinite).

Amazon EventBridge (formerly CloudWatch Events)​

  • Event-driven architecture service that reacts to AWS events or runs scheduled tasks.
  • Use cases:
    • Cron jobs (e.g., run Lambda every hour)
    • Trigger actions on IAM root logins, EC2 termination, etc.
  • Supports custom and partner event buses.
  • Advanced features: schema registry, event archiving, replay

AWS CloudTrail​

  • Audit log of all API calls & user activities (Console, CLI, SDK).
  • Default retention: 90 days for Event History.
  • Send logs to S3 or CloudWatch Logs for extended storage and alerting.
  • Tracks who did what, when, and from where (e.g., EC2 termination, user login).

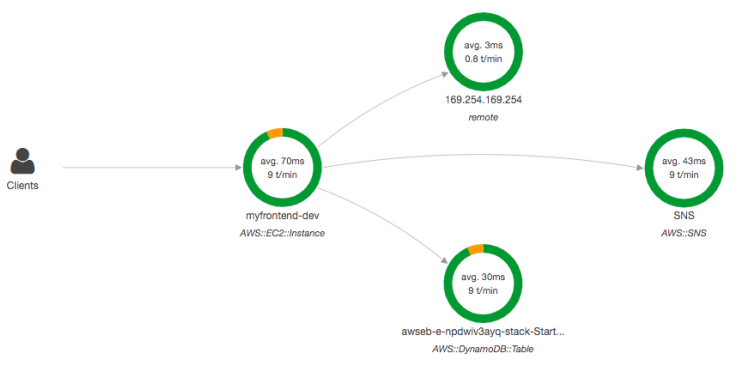

AWS X-Ray​

  • Distributed tracing for applications (especially microservices).
  • Helps developers analyze and debug production as well as distributed applications
  • Visualizes service maps, detects bottlenecks, and traces requests end-to-end.
  • Useful for understanding and debugging complex event-driven systems using SQS, SNS, Lambda, etc.

Amazon CodeGuru​

  • ML-powered DevOps tool for code quality and performance.
  • Two components:
    • CodeGuru Reviewer: Static code reviews (supports Java/Python).
    • CodeGuru Profiler: Identifies expensive or inefficient runtime code in production.

AWS Health Dashboard - Service Health​

  • Service Health: Shows global AWS service status by region.
  • Account Health: Personalized view of events affecting your account/resources.
  • Includes:
    • Real-time alerts
    • Scheduled maintenance notifications
    • Event logs for historical tracking
  • Service health offers the possibility to subscribe to an RSS feed to be notified of interruptions to each service

13. VPC & Networking​

VPC Basics​

  • VPC (Virtual Private Cloud): Isolated network in AWS within a region to deploy resources like EC2.
  • Subnets: Divide VPC into smaller ranges; each tied to an Availability Zone.
    • Public Subnet: Has a route to an Internet Gateway.
    • Private Subnet: No direct internet access.
  • CIDR Block: Defines the IP address range of the VPC.
  • Exam Tip: VPC = your own private network in the cloud. Public subnet has a route to the internet.

IP Addressing in AWS​

  • Public IPv4: Reachable over internet; changes on stop/start unless Elastic IP is used.
  • Private IPv4: Internal to VPC; persists across reboots.
  • Elastic IP: Static public IPv4 for EC2.
  • IPv6: All IPv6 addresses are public and free in AWS.
  • Exam Tip: IPv4 public IP changes unless Elastic IP is attached. IPv6 is public and free.

Internet Gateway & NAT Gateway​

  • Internet Gateway: Enables internet access for public subnets.
  • NAT Gateway: Allows instances in private subnets to access the internet outbound only.
  • Exam Tip: Use NAT Gateway for private subnet internet access.

Security Groups vs Network ACLs (NACLs)​

FeatureSecurity GroupNetwork ACL (NACL)
LevelInstance levelSubnet level
Rule typesALLOW onlyALLOW and DENY
Stateful?✅ Yes❌ No
  • Exam Tip: Security Groups are stateful, NACLs are stateless.

VPC Flow Logs​

  • Capture IP traffic logs at VPC, subnet, or ENI level.
  • Useful for troubleshooting network connectivity.
  • Logs can be sent to S3, CloudWatch Logs, or Firehose.

VPC Peering​

  • Private connection between two VPCs.
  • Must have non overlapping IP ranges.
  • Not transitive – A↔B and B↔C ≠ A↔C.

VPC Endpoints​

  • Private connection to AWS services without internet:
    • Gateway Endpoint: S3 and DynamoDB only.
    • Interface Endpoint: Other AWS services via private ENI.
  • Exam Tip: S3 & DynamoDB support gateway endpoints; all other services use interface endpoints.
  • Private access to third-party/vendor services over AWS network.
  • Uses Network Load Balancer on provider side, ENI on consumer side.
  • Scalable and secure, no need for VPC peering.

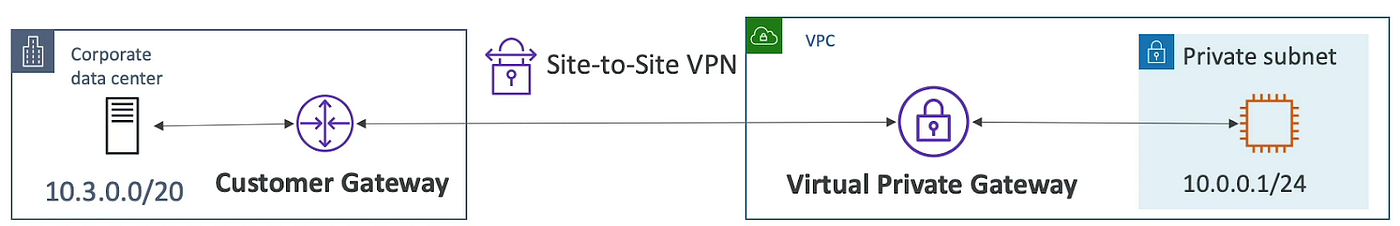

Site-to-Site VPN vs Direct Connect​

FeatureSite-to-Site VPNAWS Direct Connect
Setup timeFast (~5 min)Long (≥1 month)
PathOver internet (encrypted)Private dedicated line
ComponentsCGW + VGWDX location + router
  • Exam Tip:
    • VPN = fast setup, over internet. DX = private, secure, expensive.
    • Customer Gateway (CGW) and Virtual Private Gateway (VGW) are need to establish Site-to-Site VPN

AWS Client VPN​

  • Connect your laptop to AWS VPC using OpenVPN.
  • Enables access to private subnets from your local device.
  • Also allows access to on-prem via Site-to-Site VPN if configured.

Transit Gateway​

  • Central hub to connect thousands of VPCs, VPNs, and Direct Connect.
  • Simplifies network topology (no need for many peering connections).

✅ Exam Tip: Use Transit Gateway for large-scale VPC connectivity.

14. Security & Compliance​

Shared Responsibility Model​

  • AWS is responsible for security of the cloud (infrastructure, managed services).
  • Customers are responsible for security in the cloud (data, access control, OS patching).
  • Shared responsibilities include patch management, config management, and training.
  • Example: For EC2, patching is your job. For RDS, AWS patches automatically.
  • Exam Tip: Know which components are AWS’s vs. customer’s responsibility. This is frequently tested.

DDoS Protection: Web Application Firewall (WAF) & Shield​

  • Shield Standard: Free, automatic DDoS protection.
  • Shield Advanced: Paid service, 24/7 support, cost protection.
  • WAF: Filters malicious incoming requests at Layer 7 base on rules.
  • Use CloudFront and Route 53 for edge protection.
  • Rate-based rules in WAF mitigate request floods.
  • Exam Tip: Know the difference between Shield Standard and Shield Advanced.

AWS Network Firewall​

  • Protects entire VPC from Layer 3 to Layer 7.
  • Inspects all traffic: inbound, outbound, and inter-VPC.
  • More effective than subnet-level Network ACLs.
  • Exam Tip: Choose Network Firewall when VPC-wide protection is needed.

AWS Firewall Manager​

  • Centralized management of:
    • Security Groups
    • WAF rules
    • Shield Advanced
    • Network Firewall
  • Enforces rules across all AWS Organization accounts.
  • Exam Tip: Use Firewall Manager to manage security rules across multiple accounts.

Penetration Testing​

  • Allowed without prior approval on 8 services (e.g., EC2, RDS, CloudFront, Lambda).
  • Not allowed: DDoS, DNS zone walking, flooding.
  • Request permission for unlisted services.
  • Exam Tip: Remember the services where pentesting is pre-approved.

Encryption with Key Management Service (KMS) & CloudHSM​

  • KMS: Encrytion keys managed by AWS
  • Encryption at rest: Stored data (e.g., S3, EBS).
  • Encryption in transit: Moving data (e.g., between services).
  • KMS Types:
    • Customer-managed
    • AWS-managed
    • AWS-owned
    • CloudHSM-backed
  • CloudHSM: Hardware encrytion, we manage encrytion keys.
  • Exam Tip: Know KMS key types and the differences between KMS and CloudHSM.

AWS Certificate Manager (ACM)​

  • Provisions and manages TLS/SSL certificates.
  • Used with Load Balancers, CloudFront, and API Gateway.
  • Public certificates are free with auto-renewal.
  • Exam Tip: Use ACM to enable HTTPS on AWS services.

Secrets Manager​

  • Stores secrets securely (e.g., database credentials).
  • Supports automatic rotation using Lambda.
  • Integrates with RDS and uses KMS for encryption.
  • Exam Tip: Use Secrets Manager (not Systems Manager Parameter Store) when secret rotation is needed.

AWS Artifact (Central Resource for Compliance and Agreement)​

  • Portal to download compliance reports (e.g., ISO, PCI).
  • Manage agreements (e.g., BAA, HIPAA).
  • Exam Tip: Use Artifact for audit/compliance documentation, not for operational security.

Amazon GuardDuty​

  • Find malicious behavior with VPC, DNS & CloudTrail Logs
  • Optional: S3, EKS, RDS, EBS, Lambda, runtime data.
  • Integrates with EventBridge for alerts.

Amazon Inspector​

  • Find software vulnerabilities in EC2, ECR Images, and Lambda functions.
  • Uses CVE database for vulnerability checks.
  • Findings integrate with Security Hub and EventBridge.
  • Features:
    • Automate security assessments
    • Analyze against unintended network accessibility
    • Inspect running operating systems (OS) against known vulnerabilities
  • Exam Tip: Inspector performs continuous vulnerability assessment for EC2, ECR, Lambda.

AWS Config​

  • Tracks configuration changes and compliance.
  • Stores data in S3; integrates with CloudTrail.
  • Use Config Rules to detect misconfigurations (e.g., unrestricted SSH).
  • Can trigger SNS alerts.
  • Exam Tip: Use Config + Config Rules for compliance auditing and resource state tracking.

Amazon Macie​

  • Uses machine learning + pattern matching.
  • Scans S3 buckets for sensitive data (e.g., PII).
  • Alerts via EventBridge.
  • Exam Tip: Choose Macie when detecting/discovering or protecting sensitive data.

AWS Security Hub​

  • Central security dashboard for multiple AWS accounts.
  • Aggregates findings from:
    • Config
    • GuardDuty
    • Inspector
    • Macie
    • IAM Access Analyzer
  • Requires Config to be enabled first.
  • Exam Tip: Security Hub aggregates findings; use it for a unified security view.

Amazon Detective​

  • Investigates security issues to find root cause.
  • Uses graph analytics + ML.
  • Visualizes data from CloudTrail, VPC logs, GuardDuty.
  • Exam Tip: Use Detective to perform forensic analysis and root cause investigation.

AWS Abuse​

  • Report AWS resources used for abusive or illegal purposes
  • Report abuse (spam, port scanning, malware) via:
  • Exam Tip: Know that AWS does not allow DDoS simulations or port flooding even in your own account.

Root User Privileges​

  • Root user can:
    • Change account settings
    • Close account
    • Manage (change or cancel) support plans
    • Enable MFA delete for S3
  • Do not use root user daily; create admin IAM user.
  • Exam Tip: Know which actions are exclusive to the root user.

IAM Access Analyzer​

  • Identifies resources shared externally (S3, KMS, Secrets Manager, etc.).
  • Defines a zone of trust (account/org).
  • Can archive or auto-archive findings.
  • Exam Tip: Use Access Analyzer to discover unintended resource sharing across accounts.

15. Machine Learning​

Rekognition​

  • Analyzes images and videos to detect objects, people, faces, text, and scenes.
  • Supports use cases like labeling, content moderation, facial analysis, celebrity recognition, and activity tracking.

Transcribe​

  • Converts speech to text using Automatic Speech Recognition (ASR).
  • Features include PII redaction and multilingual support.
  • Commonly used for call transcription and captioning.

Polly​

  • Converts text into speech.
  • Useful for applications that require voice output, offering different voice engines.

Translate​

  • Provides accurate, natural language translation for content localization.
  • Supports multiple languages.

Lex and Connect​

  • Lex enables speech recognition and natural language understanding to build chatbots.
  • Connect is a cloud-based contact center that integrates with Lex to manage calls and automate workflows.

Comprehend​

  • Performs Natural Language Processing (NLP) tasks such as language detection, entity recognition, sentiment analysis, and topic modeling.

SageMaker​

  • A fully managed platform for developers and data scientists to build, train, and deploy custom machine learning models.
  • Supports the full ML workflow including data labeling and model tuning.
  • Provides an integrated experience to use all your data and tools for analytics and AI

Kendra​

  • A machine learning-powered document search service that allows natural language search across diverse document formats with incremental learning.

Personalize​

  • Builds real-time personalized recommendations without requiring ML expertise.
  • Supports retail, media, and marketing use cases.

Textract​

  • Extracts printed text, handwriting, tables, and form data from scanned documents using AI. Useful in finance, healthcare, and public sector.

16. Account Management, Billing & Support​

AWS Organizations​

  • Manages multiple AWS accounts under a master account.
  • Offers consolidated billing, shared usage discounts, and centralized policy control using Service Control Policies (SCPs).
  • Service Control Policies (SCPs) centrally manage all users and roles permissions in your AWS Organization
  • Accounts can be organized via Organizational Units (OUs).
  • Best Practices:
    • SCPs restrict account actions but don’t apply to the master account.
    • Create AWS accounts per department

AWS Control Tower​

  • Automates setup of secure multi-account environments with best practices.
  • Uses OUs, guardrails, and audit/log archive accounts. Includes an interactive dashboard and integrates IAM Identity Center for SSO.

AWS Resource Access Manager (RAM)​

  • Enables resource sharing (e.g., VPC subnets) across accounts within or outside an organization to reduce duplication and improve connectivity.

AWS Service Catalog​

  • Allows admins to define and control which CloudFormation-based products users can launch via a self-service portal, ensuring compliance and standardization.

Pricing Models in AWS​

  • 4 pricing models:
    • Pay-as-you-go
    • Save when you reserve: minimize risks, predictably manage budgets, comply with long-terms requirements
    • Pay less by using more
    • Pay less as AWS grows
  • EC2 pricing varies by instance type, usage, and region.
  • Savings increase with upfront commitments or usage volume.

Savings Plans​

  • Offer flexible discounts by committing to hourly spend for 1 or 3 years.
  • Two main types:
    • EC2 Savings Plan: Up to 72% discount compared to On-Demand
    • Compute Saving Plan: Up to 66% discount compared to On-Demand
    • SageMaker has its own savings plan.

Compute Optimizer​

  • Uses ML and CloudWatch metrics to delivers recommendations for better resource configurations. For (EC2, EBS, Lambda, Auto Scaling), cost savings and performance.

Billing and Costing Tools​

  • Pricing Calculator: Estimates service costs.
  • Billing Dashboard: Tracks total spend and free tier usage.
  • Cost Allocation Tags: Tag resources for detailed reports.
  • Cost and Usage Reports: Granular billing data.
  • Cost Explorer: Visualizes usage and forecasts future spend (up to 12 months).
  • Budgets and Alarms: Set usage/cost thresholds with alerts.

Cost Anomaly Detection​

  • Uses ML to detect unusual cost spikes without manual thresholds.
  • Sends alerts via SNS with root cause analysis.

Service Quotas​

  • Monitors AWS resource limits. Sends alerts via CloudWatch and allows quota increase requests through the console.

Trusted Advisor​

  • Provide a real time guidance to help user provision their aws resources.
  • Performs checks across 6 categories:
    • Security – detecting vulnerabilities
    • Cost optimization - finding idle/unused/unattached resources
    • Performance – improving speed and efficiency
    • Fault tolerance – improving reliability
    • Service limits – warning about usage nearing limits
    • Operational excellence
  • Full features require Business or Enterprise support plans.

AWS Support Plans​

Four tiers:

  • Basic Support Plan: Free, limited features.
    • Customer Service & Communities (24x7)
    • AWS Trusted Advisor
    • AWS Personal Health Dashboard
  • Developer: Email support, business hours.
    • All Basic Support Plan +
    • Business hours email access to Cloud Support Associates
    • Unlimited cases / unlimited contacts
  • Business: 24/7 support, full Trusted Advisor.
  • Enterprise On-Ramp
  • Enterprise: Dedicated TAM, fastest response times.

Account Best Practices​

  • Use AWS Organizations with SCPs, Control Tower for setup, IAM best practices (MFA, least privilege), tagging, CloudTrail, and centralized logging. Use CloudFormation and Trusted Advisor for consistent deployments and recommendations.

17. Advanced Identity​

AWS STS (Security Token Service)​

  • Provides temporary, limited-privilege credentials for accessing AWS resources.
  • Commonly used for identity federation, IAM role assumption, and EC2 instance credential refresh.

Amazon Cognito​

  • Manages user sign-up, sign-in, and access control for web and mobile apps. Supports millions of users and integrates with social identity providers like Google and Facebook.

AWS Directory Services​

  • Offers three options for integrating or running Active Directory in AWS:
    • AWS Managed Microsoft AD: Fully managed AD in AWS.
    • AD Connector: Proxies to on-premises AD.
    • Simple AD: Standalone, AD-compatible directory in AWS.
  • Exam Tip: See "active directory" => "aws directiory services"

AWS IAM Identity Center​

  • Provides single sign-on across multiple AWS accounts and applications. Supports built-in and external identity providers. Formerly called AWS Single Sign-On (SSO).

Advanced Identity Summary​

  • IAM manages access for trusted internal users.
  • AWS Organizations manages multiple AWS accounts.
  • STS issues temporary credentials.
  • Cognito handles app user identities.
  • Directory Services brings AD to AWS.
  • IAM Identity Center simplifies access with single sign-on.

18. Other Services​

  • Covers less common AWS services that may appear on exams
  • Goal is to memorize service definitions for exam readiness

Amazon WorkSpaces​

  • Managed Desktop-as-a-Service (DaaS) for Windows/Linux desktops
  • Replaces on-prem Virtual Desktop Infrastructure (VDI)
  • Integrated with AWS KMS, operates pay-as-you-go
  • Deploy desktops near users to reduce latency

Amazon AppStream 2.0​

  • Streams desktop applications via web browser
  • Unlike WorkSpaces, it does not provide full desktop environments
  • Allows per-app configuration for resources (CPU, RAM, GPU)
  • No need to provision or manage infrastructure

AWS IoT Core​

  • Connects and manages IoT devices at scale
  • Supports secure message exchange and pub-sub architecture
  • Integrates with AWS services like Lambda, SageMaker, etc

Amazon Elastic Transcoder​

  • Converts media files in S3 for playback on various devices
  • Outputs multiple compatible formats to S3
  • Fully managed, scalable, cost-effective, pay-per-use

AWS AppSync​

  • Builds GraphQL backends for web/mobile apps
  • Supports real-time data updates and offline sync
  • Integrates with DynamoDB and Lambda

AWS Amplify​

  • Full-stack development suite for web/mobile apps
  • Manages auth, APIs, storage, CI/CD, and more
  • Amplify Studio simplifies backend configuration
  • Wraps AWS services like AppSync, Cognito, S3, Lambda

AWS Infrastructure Composer​

  • Visual drag-and-drop tool for designing serverless apps
  • Generates infrastructure as code (CloudFormation-compatible)
  • Supports importing/editing templates
  • Allows quick setup and configuration of AWS resources

AWS Device Farm​

  • Tests apps on real browsers and devices (real devices, not emulators)
  • Supports concurrent testing, configurable environments
  • Provides logs, screenshots, and bug reports
  • Ideal for testing across varied device types and settings

AWS Backup​

  • Centralized, automated backup management service
  • Supports scheduled and on-demand backups with PITR
  • Enables cross-region and cross-account backups
  • Manages lifecycle and retention policies
  • Exam Tip: Backup focuses on centralized backups of application data across AWS services, while CloudEndure Disaster Recovery is specifically designed for fast recovery of servers, minimising downtime.

Disaster Recovery Strategies​

  • Backup and Restore: Cheapest, only backups stored
  • Pilot Light: Minimal cloud setup (e.g., DB only)
  • Warm Standby: Full app in cloud at reduced scale
  • Multi-Site: Fully deployed and running in multiple regions
  • Multi-region DR can use Route 53 for failover
  • Exam Tip: The exam may ask which strategy is the cheapest.

AWS Elastic Disaster Recovery (DRS)​

  • Formerly CloudEndure Disaster Recovery
  • Enables fast failover and failback for on-prem/cloud servers
  • Uses continuous block-level replication
  • Helps protect against data loss and ransomware

AWS DataSync​

  • Moves large datasets from on-prem to AWS
  • Supports S3, EFS, FSx for Windows
  • Supports scheduled and incremental sync after initial load
  • On-prem agent sends data to AWS DataSync services

Cloud Migration Strategies - 7Rs​

  • Retire: Turn off unnecessary services
  • Retain: Keep on-prem due to complexity or compliance
  • Relocate: Move with no architectural change
  • Rehost: Lift-and-shift
  • Replatform: Use managed services (e.g., RDS)
  • Repurchase: Switch to SaaS products
  • Refactor: Redesign using cloud-native architecture

Application Discovery & Migration Services​

  • Application Discovery Service: Gathers server data, supports agentless and agent-based modes
  • Migration Hub: Visualizes discovery data and migration plans
  • Application Migration Service (MGN): Lift-and-shift with continuous disk replication and minimal downtime. Move on-premises resources to server.

AWS Migration Evaluator​

  • Requiere: Customer installs the Agentless Collector or uses the Import Template
  • Builds business case for migration using infrastructure data
  • Collects data via Agentless Collector or data import
  • Provides cost estimates and expert guidance

AWS Migration Hub​

  • Centralizes server/app inventory for planning/tracking migrations
  • Orchestrates migrations using templates (e.g., SAP, SQL Server)
  • Integrates with MGN and DMS for automation and modernization

AWS Fault Injection Simulator (FIS)​

  • Simulates failures (CPU spikes, DB crashes, etc.) using Chaos Engineering
  • Tests app resiliency and finds performance bottlenecks
  • Supports services like EC2, ECS, EKS, RDS
  • Uses CloudWatch/EventBridge/X-Ray for monitoring

AWS Step Functions​

  • Serverless visual workflow builder
  • Supports sequencing, parallelism, error handling, conditions
  • Integrates with AWS services like Lambda, EC2, API Gateway
  • Can include manual approval steps in workflows

AWS Ground Station​

  • Manages satellite data transmission and operations
  • Transfers satellite data directly to AWS VPC
  • Supports use cases like weather forecasting, imaging, broadcasting

Amazon Pinpoint​

  • Used for sending targeted messages to users (ex: Marketing campaigns, order confirmation, update)
  • Inbound/outbound communication service
  • Supports email, SMS, push, voice, and in-app messaging
  • Integrates with SNS, Firehose, and CloudWatch for automation

19. AWS Architecting & Ecosystem​

AWS Well-Architected Framework – Overview​

A set of best practices for designing and running workloads on AWS. It includes 6 pillars:

Operational Excellence
  • Operational Excellence – Monitor, automate, improve continuously.
Security
  • Security – Protect data/systems using least privilege, traceability, encryption, and automation.
Reliability
  • Reliability – Recover from failures, auto-scale, automate changes, and plan for DR.
Performance Efficiency
  • Performance Efficiency – Use resources efficiently, adopt serverless, and experiment with newer tech.
Cost Optimization
  • Cost Optimization – Pay only for what you use, tag resources, use spot/reserved instances.
Sustainability
  • Sustainability – Reduce environmental impact by using efficient services and storage tiers.

Exam Tip: Know all 6 pillars and how AWS services map to them.

AWS Well-Architected Tool​

  • Helps assess your workloads against the 6 pillars.
  • You define a workload, answer questions, and get a risk report + improvement plan.
  • Supports custom lenses (e.g., Serverless Lens).

Exam Tip: Understand how to use the tool to improve cloud architecture.

AWS Customer Carbon Footprint Tool​

  • Tracks carbon emissions from your AWS usage.
  • Helps monitor sustainability progress and plan for 100% renewable energy targets.
  • Available under Billing and Cost Management.

Exam Tip: Mentioned under the Sustainability pillar.

AWS Cloud Adoption Framework (CAF)​

  • Helps organizations plan cloud transformation.
  • Includes 6 perspectives: Business, People, Governance, Platform, Security, Operations.
  • Follows 4 phases: Envision → Align → Launch → Scale.

Exam Tip: Know the 6 CAF perspectives and transformation phases.

Right Sizing in AWS​

  • Match instance size to workload needs.
  • Start small, monitor with CloudWatch, and adjust monthly.
  • Tools: Trusted Advisor, Cost Explorer, CloudWatch.

Exam Tip: Know right sizing is critical before and after migration.

AWS Ecosystem​

Includes:

  • AWS Blogs, Forums, Whitepapers – Learn best practices and service updates.
  • AWS Solutions Library – Prebuilt, deployable architecture templates.
  • Support Tiers – Developer, Business, Enterprise.
  • AWS Marketplace – Find 3rd-party AMIs, SaaS, templates.
  • AWS Training & Partner Network (APN) – Certs, consulting, and solutions.

Exam Tip: Understand support tiers and how AWS Marketplace simplifies procurement.

AWS IQ & re:Post​

  • AWS IQ – Hire certified AWS freelancers for project work (with billing tied to your account).
  • AWS re:Post – AWS-managed community Q&A forum; free, not for urgent issues.

Exam Tip: re:Post may escalate to AWS support for premium customers if unanswered.

AWS re:Post - Knowledge Center​

  • Part of re:Post.
  • Provides answers to common AWS questions and troubleshooting.

Exam Tip: Use it for frequently asked questions and exam prep clarifications.

AWS Managed Services (AMS)​

  • A specialized AWS team (not a console service) that manages your infrastructure.
  • Offers 24/7 monitoring, patching, backups, and automation.
  • Must contact AWS sales to use AMS.

Exam Tip: Know AMS is for organizations needing outsourced infrastructure management.
