1. Introduction to Software Architecture

1.1 Introduction

What Is Software Architecture?

Definition: the set of structures needed to reason about a system — its elements, their relations, and their properties (Bass, Clements & Kazman, 2022).

In short: it's the system's blueprint — not the code itself, but the map of what parts exist and how they connect, so you can understand the system without reading every line of code.

• Not vague decisions: it's not just "early decisions" or "major decisions" — those labels are too fuzzy to define.
• An abstraction: shows the public interface of each part, hides the private implementation.
• Multiple views, one system: like the human body — skeletal, muscular, nervous, and circulatory systems are different diagrams, but all describe the same body.

Three Kinds of Architectural Structures

Every system needs three different diagram types, each answering a different question:

Structure	Shows	Answers
Component-and-Connector	What's running, and how the pieces talk to each other	What talks to what? What's shared/replicated?
Module	How the code is split into classes/packages	Who owns what code? What depends on what?
Allocation	How software maps onto hardware/teams/files	Where does it run? Who builds it?

Component-and-Connector

Module elements

Deployment structure

Why Architecture Matters

Architecture is cheap to change on paper, and very expensive to change once built — so getting it right early matters more than almost anything else in a project.

• Cheap to explore, expensive to change — test ideas on the model before building the real thing.
• Shared language — lets business owners, architects, and developers discuss the same system.
• Reusable abstraction — a good architecture can guide future, similar systems.

Three Key Effects

1. Lasts a long time — hard to change once built.
2. Determines what's possible later — constraints lock in early.
3. Determines quality (performance, security, maintainability) — can't easily bolt these on afterward.

Trade-off: systems built for speed are hard to maintain; systems built for easy maintenance are hard to speed up. You usually can't optimise for both.

SOLID Principles

Five rules for designing classes so a codebase stays easy to change as it grows. Each one follows the same pattern: Rule → Problem it prevents → Fix.

S — Single Responsibility

• Rule: One class = one job.
• Problem: A class that both formats a report and saves it to disk has two reasons to change — a formatting update and a storage update both touch the same class.
• Fix: Split it into two classes — one for content, one for output — so each only changes for one reason.

O — Open/Closed

• Rule: Add new behaviour without editing existing, working code.
• Problem: A LogOn function is hard-coded per modem type (DialHayes, DialCourrier...), so it needs editing every time a new modem is released.
• Fix: Introduce an abstract Modem interface. New modems just implement it — LogOn itself never changes again.

L — Liskov Substitution

• Rule: If code expects a parent type, you must be able to swap in a child type and nothing breaks.
• Plain English: A child class is only allowed if it can do everything the parent promised, the same way.

LSP does not "auto-fix" your code. It is a design rule. When inheritance breaks callers, LSP tells you: stop inheriting that way — redesign so the child keeps the parent's promises.

---

Easy example: Birds

Imagine a function written for any Bird:

def make_it_fly(bird: Bird):
    bird.fly()       # promise: every Bird can fly
    print("Flying!")

Bad design (breaks LSP):

class Bird:
    def fly(self):
        print("flap flap")

class Penguin(Bird):           # ❌ real life: penguin is a bird
    def fly(self):             # ❌ code life: cannot keep the fly() promise
        raise Exception("Can't fly!")

make_it_fly(Penguin())         # 💥 crashes

Real-world "is-a" lied. Callers expected fly() to work. Penguin broke that.

How LSP tells you to fix it:

Don't put fly() on a parent that not all children can honour. Split the types:

class Bird:                    # shared stuff only (eat, sleep, ...)
    def eat(self):
        print("eating")

class FlyingBird(Bird):        # only birds that CAN fly
    def fly(self):
        print("flap flap")

class Sparrow(FlyingBird):
    pass

class Penguin(Bird):           # penguin is still a Bird — just not a FlyingBird
    def swim(self):
        print("swim swim")

def make_it_fly(bird: FlyingBird):   # now only flying birds are accepted
    bird.fly()
    print("Flying!")

make_it_fly(Sparrow())         # ✅ works
# make_it_fly(Penguin())       # ✅ type system / design stops this mistake

What changed?

• Before: parent promised something some children can't do → crash.
• After (LSP fix): parent only promises what all children can do. Flying is moved to FlyingBird.

---

Same idea: Circle / Ellipse (lecture example)

• Problem: Circle extends Ellipse looks right in maths, but Ellipse promises "set width and height separately." Circle can't keep that promise → wrong results.
• LSP fix: Don't make Circle inherit Ellipse. Give both a shared parent like Shape with only shared behaviour (e.g. area()).

---

Remember: LSP = swap the child in, and old code still works. If it doesn't, inheritance is wrong — redesign the hierarchy.

I — Interface Segregation

• Rule: Many small, client-specific interfaces beat one big one.
• Problem: One large Service interface serves every client — a change made for Client A risks breaking Clients B and C too, even though they never use that part.
• Fix: Split it into small, client-specific interfaces so each client only depends on what it actually uses.

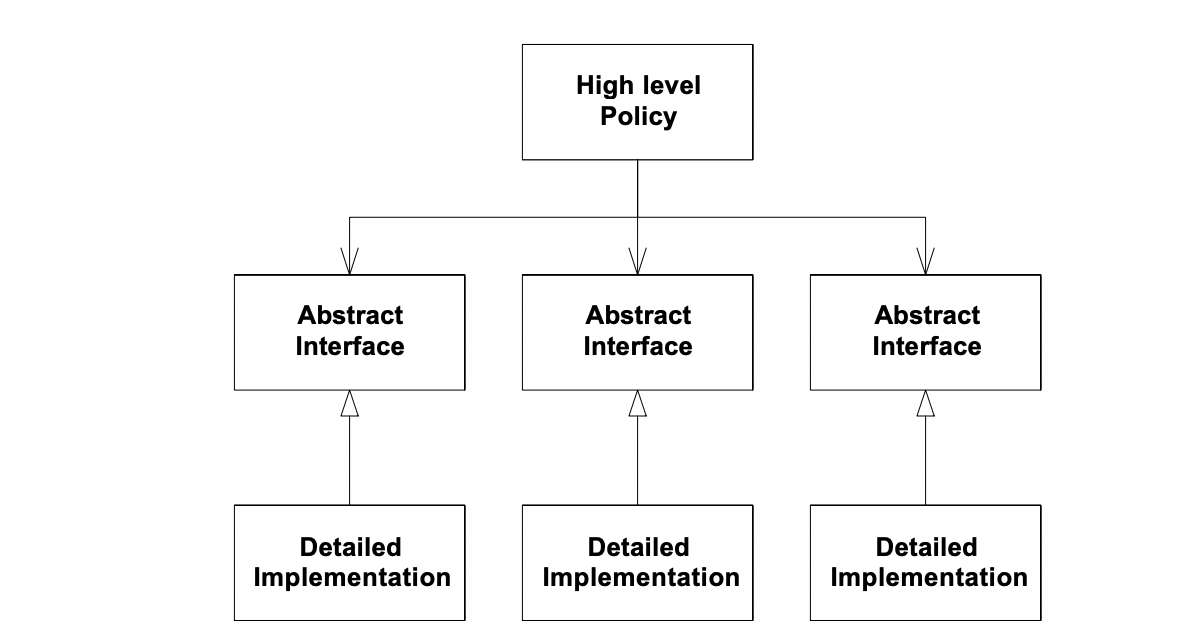

D — Dependency Inversion

• Rule: Depend on abstractions, never on concrete classes.
• Problem: In procedural code, high-level modules depend directly on low-level details — a change to a detail can ripple all the way up.
• Fix: Both high-level and low-level code depend on a shared abstract interface instead, so details can change freely without touching the high-level logic.

Quick Reference

	Principle	Core Idea
S	Single Responsibility	One class = one job.
O	Open/Closed	Extend without modifying.
L	Liskov Substitution	Subclass must be a drop-in replacement.
I	Interface Segregation	Small, focused interfaces.
D	Dependency Inversion	Depend on abstractions, not concretions.

Common Challenges Today

• Systems outgrew simple diagrams — boxes-and-arrows aren't precise enough anymore.
• More legacy/packaged systems need integrating, not building from scratch.
• Loosely-coupled components (e.g. microservices) are now the norm.
• Modelling is essential — too costly to experiment on real systems directly, so solutions are tested on models first.

TL;DR: Architecture = structures for reasoning about a system, seen through C&C / module / allocation views. It matters because it's cheap to explore early but locks in quality and flexibility later. SOLID gives concrete rules for keeping class design flexible. Modern systems demand more rigorous modelling due to scale and complexity.

1.2 C4 model

C4 model

The C4 model is a framework for visualizing software architecture. It acts like a set of maps that help software developers navigate large or complex codebases by zooming in from a high-level overview down to the specific code.

More Information: ![ProcessOn C4 model][https://www.processon.io/blog/c4-model-for-software-architecture]

---

It is structured into four levels of abstraction:

• Level 1: System Context: This provides the "overview first" by showing the entire software system, its users, and its dependencies on other systems.
• Level 2: Containers: This level zooms in to show the overall shape of the architecture and your technology choices. In the C4 model, a software system is made up of one or more "containers" (such as a client-side web app, server-side web app, mobile app, microservice, or database schema).
• Level 3: Components: Zooming in further, this level displays the logical components and their interactions within a single container.
• Level 4: Code: This is the most granular level, providing "details on demand" by showing the specific implementation details of the components, such as individual classes.

Example - Internal Banking System

Level 1: System Context

Level 2: Containers

Level 3: Components

Level 4: Code

Example - Urban Marathon

L1 & L2 Containers Architecture

L3 Components Architecture

L4 Class Architecture

---

2. Application Architecture

2.1 Architecture Context

Architecture must consider:

• Functional requirements: What the system must do.
• Stakeholder goals: What users, customers, developers, and regulators need.
• Constraints: Time, budget, skills, technology, and regulations.
• Enablers: Existing skills, systems, or technologies that can help delivery.
• Risks: Events that may prevent success.
• Opportunities: Potential benefits to pursue.

Usage narrative: A short story describing who uses the system, what they do, and their expected outcome.

2.2 Requirements, Quality Attributes, and Risk Management

Functional Requirements

Functional requirements (FRs) describe what the system must do.

Example: The system must allow customers to place online orders.

Functions are assigned to components such as modules, services, databases, and interfaces.

Non-Functional Requirements

Non-functional requirements (NFRs) describe how well the system should work. Quality attributes are a major type of NFR.

• FR: Process an online order.
• NFR: Process it securely within two seconds.

NFRs should be specific, measurable, and prioritised. They often conflict: better security can reduce usability, higher availability can increase costs, and better performance can make modification harder.

Quality Attributes

Quality attribute	Meaning	Common approaches
Availability	The system is accessible and recovers from failure.	Redundancy, retry, circuit breaker
Deployability	The system can be released and rolled back safely.	CI/CD, blue-green, canary deployment
Energy efficiency	The system minimises energy consumption.	Power monitoring, disabling unused resources
Modifiability	The system is easy and inexpensive to change.	Low coupling, high cohesion, layers
Performance	The system meets speed and resource requirements.	Load balancing, throttling
Security	The system protects data and access.	Validation, intrusion prevention
Testability	Faults are easy to find and diagnose.	Dependency injection, strategy pattern
Usability	Users can complete tasks easily.	Feedback, undo, progress indicators, MVC

Important Concepts

• CIA security triad: Confidentiality, Integrity, and Availability.
• Deployment pipeline: Development → Integration → Staging → Production.
• Low coupling: Modules have fewer dependencies.
• High cohesion: Each module has one focused responsibility.
• Performance measures: Latency, response time, throughput, and memory efficiency.

NFRs and Risk Management

Agile Scrum and DevOps

• Scrum: Develops software through short sprints.
• DevOps: Supports continuous testing, deployment, and monitoring.
• Sprint planning covers requirements, design, NFRs, and risks.

Product Backlog

The product backlog tracks user stories, priorities, sprint allocation, progress, NFRs, and risks. It is continuously updated.

Common NFRs

NFR	Meaning
Performance	System response speed
Scalability	Ability to handle more workload
Security	Protection of data and access
Usability	Ease of use
Maintainability	Ease of updating and supporting the system

Risk Identification and Assessment

• Identify: Find and classify potential risks.
• Assess: Measure probability and impact.
• Prioritise: Handle the most serious risks first.
• Record: Add risks to the risk matrix.

Expected Monetary Value

Expected Monetary Value (EMV) estimates the financial effect of a risk:

$$\text{EMV} = \text{Probability} \times \text{Impact}$$

For multiple outcomes:

$$\text{Total EMV} = \sum(\text{Probability} \times \text{Impact})$$

Example:

$$(0.98 \times \$25{,}000) - (0.02 \times \$5{,}000) = \$24{,}400$$

A positive EMV means the expected financial outcome is favourable.

Risk Response and Monitoring

• Avoid: Remove the risk.
• Mitigate: Reduce the risk.
• Accept: Monitor the risk.
• Transfer: Move the risk to another party.

Assign an owner and response plan, then continuously update the risk matrix.

---

3. Data Architecture

3.1 Data Modelling

Data modelling designs how data and its relationships should be represented. There are three levels.

Conceptual Data Model

This is the big-picture business view. It defines:

• Key entities
• Their relationships
• Business rules

For a university system, the entities may include Student, Subject, Lecturer, and Enrolment.

At this level, we may say that a student can enrol in many subjects, and a subject can have many students. We do not yet decide on tables, column names, or database technology.

Logical Data Model

This is more detailed but still independent of a particular database system. It defines:

• Tables or entities
• Attributes
• Primary keys
• Foreign keys
• Mandatory fields
• Relationship rules

Table	Important fields
Student	StudentID, Name, Email
Subject	SubjectCode, SubjectName
Enrolment	StudentID, SubjectCode, EnrolmentDate

It explains what the data should look like logically, but not whether a field is VARCHAR(100) or which index will be created.

Physical Data Model

This is the implementation-level database design. It includes:

• Exact data types, such as VARCHAR, INT, and DATE
• Tables and associative tables
• Primary and foreign keys
• Indexes
• Database-specific performance settings

3.2 Data Ingestion

Data ingestion means moving data from its original sources into a destination where it can be stored, processed, or analysed.

ETL and ELT

ETL: Extract, Transform, Load

ETL is the traditional approach:

1. Extract data from source systems.
2. Transform it by cleaning, standardising, validating, and combining it.
3. Load the prepared data into a data warehouse.

For example, customer names and dates can be cleaned before being loaded into a reporting database.

The limitation is that data often needs a defined structure before it enters the warehouse. This makes ETL less flexible for real-time, image, video, log, or other unstructured data.

ELT: Extract, Load, Transform

ELT changes the order:

1. Extract data.
2. Load it in raw form into a central repository, usually a data lake.
3. Transform it later when a particular use case needs it.

The main advantage is that the original data is retained. This is useful because:

• Raw history and lineage are preserved.
• Structured, semi-structured, unstructured, and streaming data can all be kept.
• Teams can use data for new purposes later.
• Data can be accessed before it is fully transformed.

ETL vs ELT

ETL	ELT
Transform before storage in a warehouse	Store raw data first, then transform it
Less flexible	More flexible
Traditionally batch-based	Better suited to cloud and diverse data
Raw data may not be retained	Raw data and history are retained

3.3 Data Management Systems

Data Warehouse

A data warehouse is centralised storage designed for analytics, reporting, and business intelligence. It stores curated, structured, cleaned data.

For example, a retail company’s warehouse may combine sales, customer, product, and inventory data to create company-wide reports. It is optimised for large analytical queries, not daily transactional activity such as placing an order.

Data Mart

A data mart is a smaller, focused part of a data warehouse for one business area. Examples include finance, marketing, and HR data marts.

Types of data mart:

• Dependent: Created from an existing data warehouse.
• Independent: Created directly from source systems without a warehouse.
• Hybrid: Combines warehouse data with other operational data.

Data Lake

A data lake stores large quantities of raw data in its original format. It can contain:

• Tables
• JSON or XML
• PDFs
• Images and videos
• Logs
• Sensor data

A warehouse uses more structure before analysis. A lake accepts raw data first and applies structure later when needed.

Warehouse vs Lake vs Mart

Feature	Data warehouse	Data lake	Data mart
Data type	Mostly curated and structured	Any type, including raw files and media	Focused subset, usually structured
Main purpose	BI, reports, dashboards	Exploration, ML, large-scale analytics	Department-specific analysis
Users	Organisation-wide analysts and teams	Engineers, data scientists, analysts	One department or business group
Data schema	Usually schema-on-write	Usually schema-on-read	Usually predefined
Example	Company-wide sales reporting	Raw logs, images, sensor streams	Marketing campaign dashboard

Schema-on-Write vs Schema-on-Read

• Schema-on-write: Define the structure before storing data. This is common in data warehouses.
• Schema-on-read: Store data first, then decide its structure when analysing it. This is common in data lakes.

Large Organisations Often Use All Three

3.4 Types of Data Architectures

Data Fabric

A data fabric is an architecture that connects data across many systems, clouds, databases, data lakes, warehouses, APIs, and applications.

Its goal is to make data easier to find, access, govern, and use, even when it is physically stored in many places. Key features include:

• Data integration: Connects different sources.
• Data virtualisation: Lets users access data without knowing its physical location.
• Data governance: Enforces security, privacy, quality, and compliance rules.
• Data orchestration: Automates pipelines and workflows.
• Metadata management: Records datasets’ meaning, ownership, and lineage.

Think of data fabric as an intelligent connecting layer over an organisation’s distributed data environment.

Data Mesh

A data mesh is a decentralised approach in which each business domain owns and manages its own data.

For example:

• Marketing owns marketing data products.
• Sales owns sales data products.
• Customer service owns support data products.

Instead of one central data team becoming responsible for every dataset, domain teams take responsibility for making their data useful, documented, secure, and shareable.

Key principles:

• Domain-oriented ownership: Teams own data from their business area.
• Data as a product: Data should be reliable, documented, discoverable, and usable by others.
• Self-service platform: Teams receive shared tools for storage, access, monitoring, and governance.
• Federated governance: Shared organisation-wide rules exist, while data ownership remains distributed.

Data Fabric vs Data Mesh

Data fabric	Data mesh
Focuses on connecting and integrating data technically	Focuses on distributing ownership organisationally
Uses automation, metadata, virtualisation, and orchestration	Uses domain teams and data-product thinking
Answers: “How can all our data work together?”	Answers: “Who should own and maintain each dataset?”

3.5 Big Data Solutions

Architectural Shifts in the Big Data Era

Area	Traditional approach	Modern approach
Data generation	Mostly relational, structured, batch data	Relational + NoSQL, structured + unstructured, batch + real time
Ingestion	On-premises ETL	Cloud ELT and streaming
Storage	Centralised warehouse	Cloud warehouses, distributed storage, data lakes
Analytics	Historical reports and data mining	Predictive/prescriptive analytics, AI/ML, real-time insights
Consumption	Central dashboards and reports	Self-service tools and AI-driven insights

Polyglot persistence means using different database technologies for different needs, rather than forcing every type of data into one relational database.

NoSQL Databases

NoSQL databases were developed for data that is massive, distributed, rapidly changing, or not neatly structured in tables.

Relational databases are still very important, especially when strong consistency and complex transactions are needed. However, they can be less suitable for huge amounts of sparse, semi-structured, or globally distributed internet-scale data.

Common NoSQL characteristics:

• Can scale across many machines
• Support fast reads and writes
• Often have flexible or schema-less structures
• Support replication and distribution
• May accept trade-offs in strict ACID transactions for speed and scalability

Main NoSQL Types

Type	Best for	Example use
Key-value store	Very fast, simple lookups	Sessions, cache, chat data
Document database	Flexible JSON-like records	Product catalogues, content management
Column store	Large analytical or time-series data	Event logs, IoT data
Graph database	Relationship-heavy data	Social networks, fraud detection, recommendations

Big Data Architecture Patterns

Batch Architecture

Batch architecture processes accumulated data at scheduled times.

For example, it can generate a sales report every night using all transactions from that day. It is best when immediate results are not required.

Streaming Architecture

Streaming architecture processes data continuously or almost immediately as it arrives.

For example, it can detect suspicious card transactions as they occur. It is best when a fast response is important.

Lambda Architecture

Lambda architecture combines batch and streaming processing:

• The batch layer processes complete historical data accurately.
• The speed layer processes recent live data quickly.
• The results are combined for analysis.

For example, a social-media platform may analyse historical user behaviour in batch while also responding to new posts and interactions in near real time.

3.6 Data Dictionary Table

Purpose and Characteristics

A data dictionary documents each data element, including its:

• Name
• Format
• Length
• Business meaning

It provides a shared reference for:

• Consistent database design
• Data architecture implementation

---

4. Cloud Reference Architecture

4.1 On-Premisess vs Cloud

On-Premise

On-Premises

An on-premises system is hosted and managed using infrastructure owned by the organisation.

The organisation is responsible for:

• physical servers;
• networking equipment;
• operating systems;
• databases;
• application deployment;
• security;
• backups and maintenance.

On-premises infrastructure provides greater control but usually requires higher initial costs, specialised staff and more maintenance.

Cloud

A cloud system uses infrastructure and services provided by companies such as AWS, Microsoft Azure or Google Cloud.

Cloud computing provides:

• faster deployment;
• elastic scaling;
• pay-as-you-use pricing;
• managed backups and recovery;
• access to specialised services;
• reduced infrastructure maintenance.

Possible concerns include security, privacy, ongoing costs, internet dependency and vendor lock-in.

Model	Description	Customer manages	Example
IaaS	Provides virtual infrastructure	OS, runtime, applications and data	AWS EC2
PaaS	Provides a managed application platform	Applications and data	Google App Engine
SaaS	Provides a complete application	Configuration and usage	Gmail, Salesforce

---

Other Cloud Service Models

• Network as a Service (NaaS)
• Communications as a Service (CaaS)
• Compute as a Service (CompaaS)
• Data Storage as a Service (DSaaS)

4.2 Principles for cloud-native architecture

Cloud-native architecture means designing a system to take advantage of cloud capabilities instead of simply placing an existing application on a cloud server.

Principle 1: Design for Automation

Cloud systems should automate repetitive and error-prone activities.

Automation can be applied to:

• infrastructure provisioning;
• software building and testing;
• application deployment;
• scaling;
• monitoring;
• backup and recovery.

Examples include:

• using Docker to package applications;
• using Terraform to create infrastructure;
• using CI/CD pipelines to test and deploy software;
• using autoscaling to add or remove instances.

Automation makes deployment faster, more consistent and less vulnerable to human error.

Principle 2: Be Smart with State

State is information about a user’s current situation within an application.

Examples include:

• login status;
• shopping-cart contents;
• form progress;
• game-session progress.

If state is stored inside one application server, the information may be lost when the server crashes. It also becomes difficult to send the user to another server.

Therefore, application servers should be stateless where possible. Important state should be stored externally in systems such as:

• Redis;
• managed databases;
• cloud storage.

For example, an online store can store shopping-cart information in Redis. Any application server can then retrieve the cart using the customer’s identifier.

Principle 3: Favour Managed Services

Managed services are operated and maintained by the cloud provider.

Examples include:

• managed databases;
• message queues;
• cloud storage;
• machine-learning services;
• analytics services.

The provider normally handles:

• infrastructure maintenance;
• updates;
• backups;
• replication;
• availability.

This allows the development team to focus on the product. However, using provider-specific services may create vendor lock-in.

Vendor lock-in can be reduced by:

• using open standards;
• using open-source-compatible services;
• placing provider-specific code behind interfaces;
• using containers;
• documenting a migration strategy.

Principle 4: Practise Defence in Depth

Defence in depth means protecting the system with multiple security layers.

These layers may include:

1. Edge firewall: blocks suspicious external traffic.
2. Network segmentation: separates internal parts of the system.
3. Authentication: verifies the identity of users and services.
4. Authorisation: controls what each user or service can access.
5. Application security: validates input and checks permissions.
6. Endpoint security: protects individual devices and servers.
7. Encryption: protects data during storage and transmission.
8. Continuous monitoring: detects suspicious behaviour.

Cloud-native architecture should not automatically trust a component simply because it is located inside the organisation’s network.

Principle 5: Always Be Architecting

Cloud architecture should continuously evolve as:

• user requirements change;
• traffic increases;
• security threats develop;
• cloud services improve;
• organisational needs change;
• new technologies become available.

Architects should regularly review and improve the system rather than waiting for a major failure.

For example, a video-streaming platform must adapt its architecture to support new video formats, higher resolutions and increasing user demand.

Applying the Principles to C4 Diagrams

The container and component diagrams from previous weeks should be updated to reflect cloud decisions.

Possible changes include:

• replacing a self-hosted database with a managed database;
• adding object storage;
• adding a message queue;
• introducing authentication services;
• adding caching;
• separating state from application servers;
• showing cloud-hosted APIs.

The design should then be justified using the five cloud-native principles.

4.3 Deployment Diagram

A deployment diagram shows how software systems and containers are installed and run on infrastructure in a particular environment, such as development, staging, or production.

• Deployment nodes represent where software runs, including:

  • Physical servers or devices
  • Virtual machines and cloud services such as IaaS or PaaS
  • Containers such as Docker
  • Execution environments such as database servers, Java application servers, or Microsoft IIS

• Deployment nodes can be nested. For example, a Docker container may run inside a virtual machine hosted on AWS.

• The diagram can also include infrastructure components, such as:

  • DNS services
  • Load balancers
  • Firewalls

• AWS, Azure, or other cloud-provider icons may be used, but all icons should be explained in the diagram’s key or legend.

In simple terms: A deployment diagram explains where each part of a system runs and how the infrastructure components are arranged.

4.3.1 Example Bank Deployment Diagram

4.3.2 Example Pet Clinic Diagram

4.4 System Landscape Diagram

A System Landscape Diagram shows how multiple software systems and people fit together across an organisation, department, or enterprise.

Unlike a standard C4 System Context Diagram, which focuses on one specific system, a System Landscape Diagram provides a broader overview without making any single system the main focus.

• Scope: An entire enterprise, organisation, department, or similar area.
• Main elements: People, software systems, and the relationships between them.
• Purpose: To understand how systems interact and support the wider organisation.
• Audience: Both technical and non-technical stakeholders, inside and outside the development team.
• Further detail: Each important system can be explored separately using the standard C4 model.

---

5. Security and Privacy

5.1 Dynamic Diagram

A dynamic diagram shows how system elements interact at runtime to complete a feature, use case, or user story. Interactions are numbered to show the order of communication. It can include systems, containers, or components.

Purpose: understand how data moves through the system before analysing security threats.

Details

Simple example

Tutorial Diagram

---

User → Login Controller → Security Component → Database → Response

5.2 Threat Modelling

Threat modelling is the process of identifying what could go wrong in a system and how to reduce the risk.

Focus on:

• Entry points — where users or systems can access the application
• Trust boundaries — where data moves between different trust levels
• Data flow — how information moves through the system
• Threats — possible security problems
• Mitigations — controls used to reduce those threats

5.3 Security Principles

Minimise Attack Surface

Reduce the number of possible places an attacker can target.

Examples:

• Disable unnecessary services
• Close unused ports
• Limit exposed APIs
• Restrict admin access

Secure the Weakest Link

A system's security can depend on its least secure component.

Example:

Strong encryption + Secure database + Weak password = Still vulnerable

The tutorial asks you to consider both principles when analysing a system.

5.4 STRIDE Threat Model

STRIDE is used to classify common security threats. Apply it to components and data flows in the architecture to identify possible threats.

STRIDE	Meaning	Security Property	Simple Meaning
S	Spoofing	Authentication	Pretending to be another user
T	Tampering	Integrity	Changing data or code
R	Repudiation	Non-repudiation	Denying an action
I	Information Disclosure	Confidentiality	Accessing information without permission
D	Denial of Service	Availability	Making a service unavailable
E	Elevation of Privilege	Authorization	Gaining permissions you should not have

5.5 Mitigation

A mitigation is a security control used to reduce or prevent a threat.

Threat	Possible Mitigation
Spoofing	Authentication / MFA
Tampering	Integrity checks
Repudiation	Logging and audit records
Information Disclosure	Access control / encryption
Denial of Service	Rate limiting
Elevation of Privilege	Authorization controls

5.6 Connection to C4 Diagrams

Security and privacy should be included in architecture diagrams such as:

• Application/Data Container Diagram
• Component Diagram
• Deployment Diagram

The goal is to show not only how the system is built, but also how it is protected.

Key process to remember

Dynamic Diagram = How the system works Threat Modelling = What could go wrong STRIDE = Classify the threat Mitigation = How to protect against it

---

6. Architecture Styles and Communication Patterns

Week 6 focuses on:

• recognising bad architecture
• understanding dependencies
• choosing suitable architecture styles
• choosing how components communicate

6.1 Architecture Smells

Architecture smells are warning signs that a system may be difficult to maintain, change, or scale.

Architecture Smell	Simple Meaning	Marathon Example	Improvement
Feature Concentration	One component does too many things	Backend API handles registration, schedules, volunteers, vendors, tracking, notifications, feedback, and results	Split into focused components or services
Scattered Functionality	One responsibility is spread across multiple components	Notification responsibilities exist across Web App, Mobile App, Backend API, and Notification Provider	Centralise notification rules
Dense Structure	Too many direct dependencies between components	Backend API directly connects to apps, database, authentication, payment, timing, notification, and mapping systems	Use focused integration components and asynchronous messaging
Cyclic Dependency	Components eventually depend back on each other	No cyclic dependency identified in the current Marathon architecture	Recheck after architecture changes
Unstable Dependency	A core component depends directly on less-stable or external systems	Backend API directly depends on Payment, Notification, Mapping, and Timing services	Use adapters, queues, retries, timeouts, and failure handling

Easy way to identify them

Single Responsibility Principle

To avoid Feature Concentration, each container or component should have one clear responsibility. This keeps changes and fixes focused and localised.

Instead of one Backend API owning every capability:

Backend API
 ├─ Registration
 ├─ Tracking
 ├─ Results
 ├─ Volunteers
 ├─ Vendors
 └─ Notifications

separate the responsibilities:

Backend API
 ├─ Registration Component
 ├─ Event Management Component
 ├─ Volunteer Component
 ├─ Vendor Component
 ├─ Tracking Component
 └─ Results Component

The updated Marathon solution follows this structure.

Marathon Database example

The original Marathon Database stores registration, schedules, volunteers, vendors, timing records, results, and feedback, creating Feature Concentration.

The improved architecture separates:

This keeps normal operational data separate from rapidly changing race-tracking data.

6.2 Dependencies

If A → B:

• A depends on B
• A must know how to connect to B
• B does not need to know about A
• communication can move both ways, but A normally initiates it

Marathon examples

Component	Depends On
Web Application	Backend API
Mobile Application	Backend API
Backend API	Marathon Database

6.3 Architecture Styles

Compare architecture styles by advantages, disadvantages, and suitable use cases, then justify which styles should be used in the system.

Style	Meaning / Marathon Use	Advantages	Disadvantages
Layered	Separates presentation, business, and data responsibilities	Clear structure; easier testing and maintenance	Layers may become tightly coupled; limited independent scaling
Service-Oriented	Used for Payment, Mapping, Notification, and Authentication integrations	Reusable services and standard interfaces	More coordination and governance
Event-Driven	Used for timing, tracking, race updates, and alerts	Handles traffic spikes, asynchronous processing, and real-time events	Harder tracing, testing, ordering, and error handling
Microservices	Separate capabilities such as Registration, Tracking, or Results	Independent deployment/scaling and failure isolation	More deployment, networking, monitoring, and data complexity

Marathon selected approach

The sample solution uses a hybrid architecture:

6.4 Communication Patterns

The tutorial introduces four main communication methods:

Pattern	Simple Meaning	Marathon Example
Repository	Components read and write shared stored data	Backend API → Operational Database
API	Consumer sends a request to a provider	Web/Mobile → Backend API
Persistent Connection	Connection remains open for real-time communication	Notification Service → Mobile App
Queue / Broker	A middleman carries messages asynchronously	Timing Events → Event Broker → Tracking Processor

6.5 Repository Communication

Multiple containers read and write data through a shared repository, usually a database.

Limitations

• mainly supports CRUD
• constant polling can waste resources
• multiple writers can create consistency problems

CRUD: Create, Read, Update, Delete.

6.6 API Communication

With APIs, Consumer → Provider. The consumer initiates communication and can pull or push information.

Marathon examples

These use APIs over HTTPS/JSON in the sample architecture.

REST APIs

REST is the main API style discussed in the tutorial.

URL = resource/noun HTTP method = action/verb

Method	Example	Meaning
GET	/tickets	Retrieve tickets
GET	/tickets/123	Retrieve one ticket
POST	/tickets	Create
PUT	/tickets/123	Update
DELETE	/tickets/123	Delete

Important response codes:

Code	Meaning
200	Success
400	Bad request
401	Not authenticated
403	No permission
404	Not found

REST APIs are also stateless: each request is processed independently without relying on previous requests. Data is commonly exchanged using JSON.

API Limitation → Persistent Connections

REST communication is initiated by the consumer. That creates a problem for real-time updates.

The server should not need to wait for the Mobile App to ask for an update. This is where persistent connections are useful.

6.7 Persistent Connections / WebSockets

A persistent connection remains open:

After the consumer creates the connection:

• the client can send messages
• the server can send messages
• either side can close it

Used for timely Marathon:

• race updates
• emergency alerts
• mobile notifications

Limitations

• Ambiguous interface: WebSockets do not strongly define what messages or events should look like, so both sides must agree on the format.
• Difficult to scale: persistent connections make the backend more stateful and harder to divide across services.

6.8 Queues and Brokers

Instead of services communicating directly (Producer → Consumer), use a middleman:

Message queues can provide:

• reliability
• ordering
• prioritisation
• load balancing
• buffering
• playback
• translation

Marathon timing example

This is an important example of event-driven communication:

Why use a broker? If thousands of runners cross checkpoints at once, the broker helps buffer events and decouple the timing devices from processing.

Publish / Subscribe

With Pub/Sub:

• a publisher produces events
• a subscriber receives events
• a service can be both

Events are organised into topics/channels. The publisher does not need to know every subscriber.

Marathon notification example

Instead of Backend API → Notification Provider, the improved architecture uses:

Notification delivery becomes asynchronous, so sending a notification does not need to block the user's main request.

6.9 Marathon Communication Summary

Source → Destination	Pattern	Why
Web → Backend API	API	Immediate response
Mobile → Backend API	API	Current race information
Backend → Operational DB	Repository	Store authoritative data
Backend → Payment	API	Payment confirmation
Backend → Mapping	API	Route information
Timing → IoT	Broker / MQTT	High-volume device communication
IoT → Event Processing	Queue/Broker	Scalable asynchronous processing
Processor → Tracking DB	Repository	Frequent tracking updates
Backend → Notifications	Queue/Broker	Avoid blocking user requests
Notification → Mobile	Persistent connection	Real-time updates

Main Week 6 takeaway

Architecture Style = how the system is organised. Architecture Smell = warning that the organisation has a problem. Dependency = which component relies on another. Communication Pattern = how components exchange information.

For the Marathon system:

Immediate request?
      → API

Store/retrieve data?
      → Repository

Real-time two-way/update communication?
      → Persistent Connection

High-volume or asynchronous events?
      → Queue / Broker

This is the core logic connecting the Week 6 tutorial concepts to the Marathon Management System sample solution.

---

7. Architecture Evaluation

Week 7 focuses on:

• checking whether a design can meet requirements and handle realistic situations
• comparing architecture alternatives with ATAM
• finding failure risks with HAZOP
• documenting decisions and updating the C4 model

7.1 Purpose of Architecture Evaluation

Architecture evaluation checks whether a system design can meet requirements, handle realistic situations, and avoid major failures.

Mistakes are easier and cheaper to fix early.

7.2 ATAM — Architecture Trade-off Analysis Method

ATAM evaluates how well an architecture handles different scenarios and helps compare alternatives.

ATAM = Which architecture is better for this situation, and what trade-offs do we accept?

Tutor sample — architectural alternatives

Scenario	Alternatives	Benefits	Trade-offs	Decision	Justification
Large burst of timing events	A: Direct to Backend API B: IoT Data Ingestion + Event Stream	A: Simple B: Buffers traffic, scalable, reliable	A: API overload/lost events B: More infrastructure and ordering complexity	B	Protects Backend API and supports race-day scaling
Notification Provider unavailable	A: Synchronous API call B: Queue + asynchronous delivery	A: Immediate result B: Retries and failure isolation	A: Provider failure affects app B: Delivery may be delayed	B	Improves resilience
Tracking data grows heavily	A: Use Operational DB B: Separate Tracking Data Store	A: Simple B: Independent scaling	A: Tracking may slow core DB B: More integration complexity	B	Protects registration/admin workloads

Event burst

Instead of sending timing events straight to the Backend API:

use a buffer so the API is not overwhelmed:

The Event Stream acts as a buffer, so the Backend API is not overwhelmed.

Notification failure

Instead of a synchronous call:

use a queue so the user request does not fail immediately if the provider is down:

Large tracking data

Separate high-volume tracking data from operational data:

This prevents tracking traffic from slowing important operational functions.

7.3 Trade-offs

A design is rarely best at everything.

Decision	Improves	Trade-off
Event Stream	Scalability, reliability	More complexity
Separate Tracking DB	Performance	Data consistency becomes harder
Notification queue	Availability	Notifications may be delayed
Validation	Correctness / security	More processing

So architecture evaluation asks:

Are these disadvantages acceptable compared with the benefits?

7.4 HAZOP — Hazard and Operability Analysis

HAZOP looks for possible failures in interactions between system components.

HAZOP = What can go wrong when data moves through the system?

You normally examine an interaction such as:

Then apply guide words.

7.5 HAZOP Guide Words

Guide Word	Meaning	Simple Example
No	Nothing arrives	No timing event
More	Extra / duplicate data	Same event received twice
Part of	Missing information	Checkpoint ID missing
Other than	Information exists but is wrong	Wrong runner ID
Early	Arrives too early	Event received before expected time
Late	Arrives too late	Tracking event delayed
Before / After	Wrong sequence	CP2 processed before CP1

7.6 HAZOP Analysis

Tutor sample — HAZOP analysis

Interaction	Guide Word	Deviation	Cause	Consequence	Risk	Mitigation
Timing Device → IoT Ingestion	No	No event received	Device / network / battery failure	Runner time / location missing	High	Buffer locally and resend
Timing Device → IoT Ingestion	More	Duplicate events	Retry / repeated delivery	Duplicate results	High	Unique event ID + deduplication
Timing Device → IoT Ingestion	Part of	Required field missing	Faulty / incomplete message	Cannot match event correctly	High	Validate required fields
Timing Device → IoT Ingestion	Other than	Wrong runner / checkpoint ID	Misconfiguration / tampering	Wrong tracking / results	High	Authenticate and validate
IoT Ingestion → Event Stream	Late	Event delayed	Congestion / overload / retries	Tracking becomes inaccurate	Medium	Monitor latency and scale
Event Stream → Processing	Before / After	Events processed in wrong order	Async / parallel processing	Wrong progress / results	High	Timestamps + sequence numbers

No

Nothing arrives, so the system cannot record the runner event.

More

The same event arrives multiple times.

Use a unique event ID and ignore duplicates.

Part of

Expected:

Runner ID
Checkpoint ID
Time

Received:

Runner ID
Time

Some required data is missing.

Other than

All fields exist, but one is wrong.

Actual runner: 521
Received ID: 125

Late

Runner crosses checkpoint: 10:30
System receives event: 10:36

The event is correct, but too delayed.

Before / After

Expected:

CP1 → CP2 → CP3

Received:

CP2 → CP1 → CP3

Use timestamps and sequence numbers to reorder events.

7.7 HAZOP Answer Structure

A proper HAZOP answer should follow the structure used in the tutor solution:

7.8 ATAM vs HAZOP

	ATAM	HAZOP
Main purpose	Compare architecture choices	Find failure risks
Starts with	Scenario	Interaction
Question	Which design is better?	What can go wrong?
Looks at	Benefits + trade-offs	Deviation + cause + consequence
Result	Architectural decision	Risk mitigation
Example	Direct API vs Event Stream	What if event arrives late?

ATAM = Choose / improve the design HAZOP = Try to find how the design can fail

7.9 Architectural Decisions

After evaluation, important decisions should be documented.

Tutor sample — architectural decisions

Issue	Decision	Rationale
Timing bursts overload API	Use IoT Ingestion + Event Stream	Buffers traffic and allows scaling
Provider failure blocks requests	Use queued notifications	Supports retries and isolates failure
Tracking affects main DB	Use separate Tracking Store	Independent scaling
Duplicate / incomplete events	Validate and deduplicate	Protect result integrity
Events arrive out of order	Reorder using timestamps / sequence	Correct progress / results
Results published too early	Require verification	Prevent incorrect official results

A useful documentation pattern is:

7.10 Evaluation Changes the Architecture

The tutor's final architecture adds components because of the problems found during evaluation.

Problem	Architecture Improvement
Event burst	IoT Data Ingestion + Event Broker
Invalid events	Validation + Dead-Letter Queue
Duplicate / out-of-order events	Tracking Event Processor
Provider failure	Notification Worker + Queue
Large tracking volume	Separate Tracking Data Store
Hard-to-detect failures	Monitoring and Alerting

The updated C4 diagram includes the Event Broker, DLQ, Tracking Processor, Notification Worker, monitoring, separate tracking storage, audit logs, and identity service.

7.11 Dead-Letter Queue

A Dead-Letter Queue (DLQ) stores messages that cannot be processed correctly.

Instead of losing the failed event, the system keeps it for:

• investigation
• retry
• correction

The tutor's architecture sends invalid timing events and failed processing / notifications to the DLQ.

7.12 Monitoring

Monitoring checks whether the architecture is operating correctly.

The sample monitors:

• queue depth
• ingestion latency
• event processing
• notification delivery
• DLQ failures

Not every problem can be prevented, so the system must also detect problems quickly.

7.13 Connection to C4

Earlier weeks:

Week 7:

Week 7 is about testing and improving the architecture you already designed.

Main Week 7 takeaway

Architecture Evaluation checks whether a design can handle realistic scenarios and failures. ATAM compares architectural alternatives, benefits, and trade-offs to choose an appropriate design. HAZOP examines interactions using guide words such as No, More, Part of, Other than, Late, and Before / After to identify causes, consequences, risks, and mitigations. The results are then used to improve the architecture, update the C4 model, and document architectural decisions and rationale.

---

8-12. Project Selection and Peer Review (PR)

---

Extend (Elective Topic)

These four topics apply architectural principles to dedicated devices, web applications, product families, and independently deployed services.

Extend: Embedded Systems

Lecture reference from the supplied notes: Embedded Software 2022 — 62 slides.

What Is an Embedded System?

An embedded system is a special-purpose computer that performs one or a few dedicated functions, usually inside a larger device.

Examples include car braking systems, pacemakers, microwaves, smart meters, and industrial controllers.

Characteristic	What it means
Dedicated purpose	Designed for specific tasks rather than general computing
Firmware	Software commonly stored in Flash or read-only memory
Limited resources	Restricted CPU, memory, storage, and power
Limited interface	May have no screen or keyboard
Timing constraints	Some tasks must finish within strict deadlines
Hardware integration	Interacts closely with sensors, actuators, and other physical devices

Quiz distinction: A control system is not necessarily embedded; it can run on a general-purpose computer. An embedded system is not necessarily hard real-time.

Constraints and Quality Attributes

Hardware limits shape the architecture. A battery-powered controller, for example, must balance useful work against CPU usage, memory, and energy consumption.

Quality attribute	Architectural goal
Real-time performance	Complete operations within their required time limits
Computational efficiency	Minimise CPU, memory, and power usage
Portability	Adapt software to different or newer hardware
Reliability and recoverability	Operate correctly and recover safely from failures
High determinacy	Define predictable behaviour, including responses to exceptional conditions

Hard real-time: Missing a required deadline counts as system failure, even when the computed result is correct.

High determinacy: Define how the system responds to expected conditions and exceptions, including safe fallback actions.

Designing for Reliability

The architecture should both reduce the chance of failure and support recovery when a failure occurs.

Technique	Purpose
Watchdog timer	Detect an unresponsive system and trigger recovery, such as a restart
Redundancy	Use duplicate modules and compare results to detect faults
Modularity	Separate responsibilities so faults are easier to contain
Low coupling	Limit how much one component's failure affects others
Simplicity	Reduce unexpected interactions and difficult failure combinations
Fallback behaviour	Move to a defined safe response when normal operation fails

Trade-off: Tight coupling may reduce communication overhead, but it can make changes and failures spread between components. Loose coupling makes components easier to change and isolate.

Evaluating the Architecture

Evaluate performance, timing, reliability, hardware capacity, and failure scenarios before implementation. Architecture Description Languages (ADLs) and diagrams can support this analysis.

Two limitations matter:

• Model fidelity: The model may not accurately represent hardware speed, capacity, or power consumption.
• Simulation: Real behaviour and interactions can be difficult to predict before the system exists.

Operating System Architectures

Aspect	Microkernel	Monolithic kernel
Structure	Small kernel; many services run separately	More services integrated into the kernel
Communication	Often relies on message passing between services	More direct calls within the kernel
Performance	Messaging and context switches can add overhead	Direct interaction can reduce overhead
Fault isolation	Separate services can improve isolation	A kernel-service fault can affect the whole system
Extensibility	Services can be easier to replace independently	Changes require care across integrated kernel code
Main challenge	Communication and process coordination	Kernel complexity and interdependencies

Layering describes how responsibilities and dependencies are organised. It is not synonymous with a monolithic kernel; a kernel can use layers internally.

Real-Time Scheduling

A Real-Time Operating System (RTOS) provides scheduling and predictable execution mechanisms so tasks can meet deadlines. Meeting those deadlines also depends on the workload and system design.

Approach	How it works	Main consideration
Priority-based	In a preemptive scheduler, higher-priority tasks can interrupt lower-priority tasks	Flexible, but shared resources can cause priority inversion
Time-triggered	Tasks run at predetermined times or clock intervals	Predictable timing, but the schedule must accommodate the workload

Priority inversion: A high-priority task waits for a resource held by a lower-priority task. Other work may delay the lower-priority task and extend that wait.

Intelligent Real-Time Control

Autonomous vehicles and robots combine perception, modelling, decision-making, and physical action.

This simplified flow shows how the responsibilities relate:

• Sensing: Collect and interpret environmental information.
• World modelling: Maintain a representation of the environment.
• Value judgement: Assess costs, benefits, and uncertainty.
• Behaviour generation: Plan actions.
• Actuation: Carry out actions in the physical world.

Remember: Embedded architecture balances resource limits, predictable timing, reliability, recovery, and interaction with hardware.

Extend: Web Application

Lecture reference from the supplied notes: WebSystems 2022 — 46 slides.

What Is a Web Application?

A web application is accessed through a browser or web-based interface. Its components communicate over a network, commonly using HTTP or HTTPS.

HTTP and Session State

HTTP is stateless: The protocol does not automatically remember previous interactions. Applications add mechanisms to associate requests with a user session.

A typical server-side session works as follows:

1. The user logs in.
2. The server creates a session and returns a cookie containing a session identifier.
3. The browser sends that cookie with later requests.
4. The server uses the identifier to look up the session.

Quiz distinction: A stateless protocol can support an application that maintains state. The application manages that state explicitly.

Communication Between Components

Aspect	XML-RPC	REST	SOAP
Core idea	Invoke remote procedures	Interact with resources identified by URIs	Exchange structured messages
Representation	XML	Flexible, such as JSON or XML	XML
Communication	Commonly HTTP POST	Commonly uses HTTP methods	Often HTTP; other transports are possible
Typical strength	Simple remote function calls	Resource-oriented interfaces	Formal messaging and service contracts
Main consideration	Procedure-oriented interface	Requires consistent resource and method design	More messaging and tooling complexity

XML-RPC encodes remote procedure calls and responses in XML. REST (Representational State Transfer) is an architectural style, rather than a message format.

SOAP uses structured XML messages. SOAP services often describe their operations and message types using WSDL (Web Services Description Language).

HTTP method	Typical purpose
GET	Retrieve a resource
POST	Submit data for processing, often creating a resource
PUT	Create or replace the state of the resource at a known URI
DELETE	Remove a resource

Model–View–Controller and Action–Domain–Responder

Model–View–Controller (MVC) separates application responsibilities:

Component	Responsibility
Model	Application data and domain logic
View	Presentation and user interface
Controller	Handle input and coordinate the Model and View

This is a simplified request flow; interactions vary between MVC implementations.

Action–Domain–Responder (ADR) separates HTTP request handling into three roles:

• Action: Receive input and coordinate the operation.
• Domain: Execute business logic and manage state.
• Responder: Construct the HTTP response.

Fat Client vs Thin Client

Fat client	Thin client
More processing on the user's device	More processing on the server
Greater client-side responsibility	Greater centralised responsibility
Example: Calculate a loan estimate locally	Example: Submit a reservation for server-side processing

These describe where processing happens. A web application can combine both approaches for different functions.

N-Tier Architecture and Scaling

N-tier architecture separates an application into tiers, such as presentation, application logic, and data storage. Tiers can run on different servers and scale independently.

Scaling approach	What changes	Example
Horizontal	Add more instances or servers	Distribute traffic across three application servers with a load balancer
Vertical	Increase one server's capacity	Add CPU or RAM to the application server

Session-state consideration: Horizontal scaling is easier when requests can reach any instance. Keeping session state in shared storage reduces reliance on one server's local memory.

Quality Attributes

Attribute	Goal
Scalability	Handle increasing users and traffic
Security	Protect users, applications, and data
Usability	Make interfaces understandable and easy to use
Reliability	Continue operating and recover from failures
Modifiability	Accommodate frequent requirement changes
Performance	Provide suitable response times and throughput

Throughput is the number of requests completed per unit of time. Response time is how long an individual request takes. High throughput does not guarantee a fast response for every user.

Related Web Concepts

Concept	Meaning
Web 2.0	User participation, collaboration, and user-generated content
E-commerce	Electronic buying and selling
Software as a Service (SaaS)	Software delivered as a service over a network
Internet of Things (IoT)	Connected physical devices exchanging information
Cloud computing	Shared computing resources that can be provisioned and scaled

Remember: Web architecture connects clients, application logic, and data while balancing scalability, security, usability, and performance.

Extend: Product Line Architectures

Lecture reference from the supplied notes: Product Line Architecture 2022 — 46 slides.

What Is a Software Product Line?

A Software Product Line (SPL) is a family of related systems built from shared core assets, with controlled variations for different products or customers.

For example, a family of cameras may share image-processing software while supporting different sensors, lenses, and features.

Core Terminology

Term	Meaning
Commonality	Features, components, and processes shared across the family
Variability	Characteristics that differ between products
Core assets	Reusable requirements, architecture, code, tests, documentation, tools, and processes
Variation point	A planned place where products can differ

Key distinction: A product line reuses the wider development effort, including architecture and tests. It goes beyond copying code between projects.

Benefits and Trade-offs

Benefit	Why it matters
Lower development cost	Shared assets reduce repeated work
Faster time to market	Products need less development from scratch
Higher productivity	Teams reuse established solutions
Improved quality	Fixes to shared assets can benefit multiple products
More predictable development	Plans, tests, and methods can be reused
Architectural consistency	Products follow common design principles

The benefits require investment and ongoing control:

• Initial cost: Shared assets take time to build and generalise.
• Reduced flexibility: Individual products must fit the shared architecture.
• Configuration complexity: Teams must manage supported feature combinations and versions.
• Organisational commitment: Reuse needs consistent processes and ownership.
• Feature growth: Uncontrolled additions can make the family difficult to maintain.

Lecture-specific cost point: The supplied notes describe recovering the extra investment after the third product. Treat this as the lecture's illustration; actual break-even depends on costs and reuse.

Designing for Variation

Begin with the shared business processes. Identify what stays constant and what must vary, then carry out three architectural activities:

1. Identify variation points: Find requirements and components that differ between products.
2. Support variation points: Provide mechanisms for controlled differences.
3. Evaluate the architecture: Check that it supports the intended product family and its quality requirements.

Variability technique	How it works	Example
Parameterisation	Configure behaviour through values	Set language, currency, or transaction limits
Information hiding	Put interchangeable implementations behind a stable interface	Swap payment providers
Inheritance	Extend or specialise shared functionality	Implement specialised product variants

The goal is to support planned differences without repeatedly changing the shared core architecture.

Managing Product Line Evolution

Product lines evolve as technology and customer needs change. Watch for:

• Feature bloat: Too many features accumulate in the shared assets.
• Incompatible components: Variants no longer work together.
• Architectural limits: New requirements exceed what the original architecture supports.
• Uncontrolled variation: Too many combinations become difficult to build, test, and maintain.

Design principle: Plan and control reuse. More reuse is useful only when the resulting products remain manageable.

Case study — CelsiusTech Ship System 2000

The supplied notes describe a naval command-and-control product family with a shared architecture across different systems.

Key architectural features include:

• Support for different sensors, weapons, and computing environments.
• Strongly typed messages and hardware-independent component interactions.
• Strict architectural layering.
• Significant reuse between products.

Its quality concerns include performance, modifiability, safety, reliability, availability, and testability.

The case illustrates how a shared architecture can support variations across complex real-time products.

Remember: Product line architecture combines shared assets with controlled variation to build a family of related products.

Extend: Microservices Architecture

Lecture reference from the supplied notes: Microservices Architecture 2022 — 36 slides.

What Are Microservices?

Microservices architecture divides an application into services organised around focused business capabilities. Services communicate through defined interfaces and can be deployed independently.

An e-commerce application might separate customers, products, orders, payments, and recommendations into services.

Monolithic vs Microservices Architecture

Aspect	Monolithic application	Microservices
Deployment	One main deployable application	Multiple independently deployable services
Execution	Modules commonly run within one application process	Services run in separate processes
Changes	Commonly require redeploying the application	Can be released service by service
Scaling	Commonly scales the whole application	Can scale individual services
Operations	Simpler initial deployment and monitoring	More distributed infrastructure to manage
Coupling	Can be modular, but boundaries may be easier to cross	Requires deliberate control of API and data dependencies

Service Boundaries: Cohesion and Coupling

Concept	Meaning	Desired direction
Cohesion	How closely related a service's responsibilities are	High: Keep related behaviour together
Coupling	How strongly services depend on each other	Low: Limit the effects of changes and failures

A good service has a focused business responsibility, hides its internal implementation, and exposes a clear API.

The Single Responsibility Principle helps define a coherent reason for a service to change. A useful business capability may still require several services to collaborate.

Benefits

Benefit	Architectural value
Independent development	Teams can work on separate services
Independent deployment	Release changes without redeploying the entire application
Independent scaling	Allocate capacity to the services that need it
Fault isolation	Boundaries can help contain failures
Maintainability	Focused codebases can be easier to understand
Technology flexibility	Services can use different languages or storage technologies
Team autonomy	Teams can own development, deployment, and support

Fault isolation is conditional: A service failure can still affect its callers. Service boundaries alone do not guarantee that the rest of the application stays available.

Costs and Challenges

Challenge	Why it occurs
Distributed complexity	Services communicate across process and network boundaries
Communication overhead	Remote calls add latency and can fail
Testing difficulty	Behaviour depends on interactions between services
Operational complexity	Many services need deployment, monitoring, and maintenance
Data consistency	Updates may span independently owned data stores
Debugging difficulty	One failure may involve several services
Rollout coordination	Changes affecting multiple services need compatible interfaces and release planning

Data Ownership and Eventual Consistency

Each service should own its data or schema. Other services access that data through defined interfaces rather than directly depending on its internal tables.

Data ownership supports independent changes and storage choices. It also makes cross-service transactions harder and may require duplicated data with explicit synchronisation.

Eventual consistency allows temporary differences between copies of data. If no new updates occur and propagation succeeds, the copies eventually converge.

Example: an order service keeps a copy of a customer's current contact address.

1. The customer updates their contact address in the Customer Service.
2. The Order Service temporarily retains the previous copy.
3. The update propagates to the Order Service.
4. Both services reflect the same current contact address.

This example concerns a synchronised contact record; an existing order may intentionally preserve its original shipping address.

Consistency model	What readers observe
Strong consistency	In the usual single-copy model, reads reflect the latest completed write
Eventual consistency	Readers may temporarily see older values while updates propagate

Quiz distinction: Independent services can use different technology stacks, but they must still agree on communication contracts and how shared information stays consistent.

Migrating from a Monolith

Migration can happen incrementally:

1. Identify distinct business capabilities.
2. Select a focused capability to extract.
3. Implement it as an independently running service.
4. Define its API and data ownership.
5. Integrate it with the remaining monolith.
6. Repeat as the benefits justify further extraction.

A business function may be delivered by several collaborating services. It does not have to fit entirely inside one service.

Layering and Dependencies

Services can be arranged in layers, with higher-level services coordinating lower-level capabilities. The supplied notes also describe front-end macroservices coordinating back-end microservices.

Keep the examples distinct: CelsiusTech uses strict layering in its product line. Microservices do not inherently require one strict hierarchy; their dependencies still need clear boundaries.

Team Organisation and DevOps

A team can own the full service lifecycle:

Development → Testing → Deployment → Monitoring → Maintenance

The lecture's “you build it, you support it” approach connects implementation with operational responsibility. Clear ownership helps teams respond to failures and changing requirements.

Common Anti-patterns

Anti-pattern	Problem	Design response
Service that does too much	Becomes a miniature monolith with unrelated responsibilities	Revisit boundaries around cohesive business capabilities
Shared persistence	Services directly depend on the same database structures	Establish data ownership and communicate through defined interfaces

When Are Microservices Useful?

Consider microservices when:

• Different capabilities need independent scaling.
• Teams benefit from separate ownership and release schedules.
• Independent deployment provides clear value.
• A growing application has boundaries that can be separated meaningfully.

For a small or early-stage application, distributed operations may cost more than they help. Choose service boundaries and deployment complexity to match the actual requirements.

Remember: Microservices aim for high cohesion, low coupling, and independent development, deployment, and scaling—with additional distributed-system complexity.

Extend: Topic Comparison

Topic	Main focus	Core principle	Main challenge
Embedded systems	Dedicated functions within physical devices	Predictability, efficiency, and reliability	Resource limits and real-time deadlines
Web applications	Applications accessed across a network	Client–server communication and separation of responsibilities	Security, performance, and scalability
Product line architectures	Families of related products	Shared assets and controlled variation	Initial investment and variability management
Microservices	Independently deployable services	High cohesion and low coupling	Distributed operations and data consistency

These topics can overlap. A product line can contain embedded systems, and a web application can use microservices.

Extend: Quiz Review

Try answering each question before expanding it.

1. What happens when a hard real-time system misses a deadline?

The missed deadline counts as system failure, even if the result is otherwise correct.

2. What is high determinacy?

Defined, predictable behaviour for operating conditions and exceptions, including fallback actions when normal operation cannot continue.

3. How do horizontal and vertical scaling differ?

Horizontal: Add more instances or servers. Vertical: Increase the capacity of an existing server, such as its CPU or RAM.

4. What does HTTP being stateless mean?

HTTP does not automatically retain context between requests. Applications can maintain sessions explicitly, for example using a cookie that identifies a server-side session.

5. What is the central principle of a software product line?

Build related products from shared core assets while controlling the variations between them.

6. What are the three product-line variability techniques?

Parameterisation, information hiding, and inheritance. They allow configuration, interchangeable implementations, and specialisation respectively.

7. What two qualities should good microservices have?

High cohesion within each service and low coupling between services.

8. Can microservices be developed, deployed, and scaled independently?

Yes. This is a central goal, supported by clear service boundaries, compatible interfaces, and independent data ownership.

9. Can microservices use different technology stacks?

Yes. Services can use different languages and storage technologies while communicating through agreed interfaces.

10. What is eventual consistency?

Copies of data may temporarily differ but eventually converge if updates stop and propagation succeeds.
